Fuel Sending Unit

Fuel Sending Unit

$48.00

Adjustable fuel sending unit for classic truck tanks 5 to 25 inches deep. SAE 5-bolt flange, in 0-90, 75-10, 0-30 or 240-33 ohm to match your fuel gauge.

  • Set it to your tank - adjustable depth reader instead of a tank-specific unit.
  • Sealing hardware included - stainless screws and Buna-N gasket in the box.

Install Level: Easy

Select the ohm range your gauge expects: 0-90 for most aftermarket gauges, 75-10 for most stock gauges.

SKU: 33001

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
Fuel Sending Unit
From $48.00

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 4
  • C10/F100 Stainless Sending Unit $48.00 Details for C10/F100 Stainless Sending Unit
  • Rollover Safety Vent $31.00 Details for Rollover Safety Vent

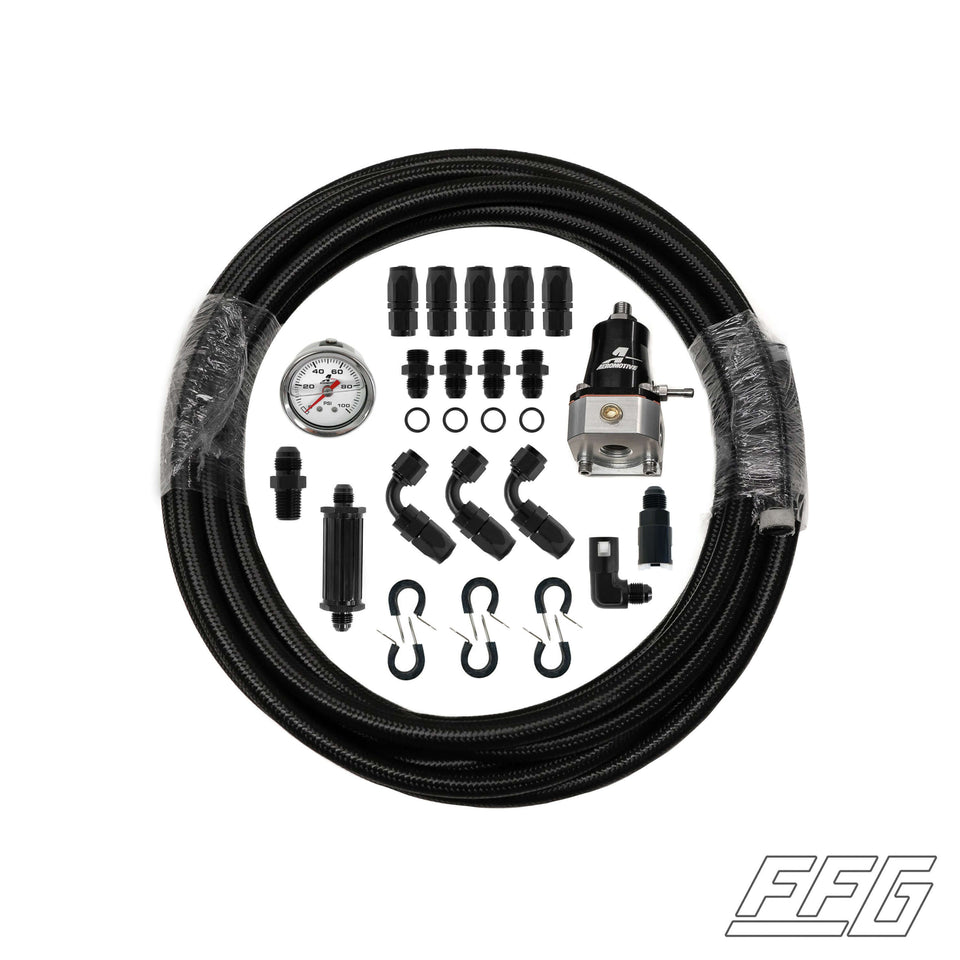

  • FFG Return Style Fuel Line System $1,009.00 Details for FFG Return Style Fuel Line System

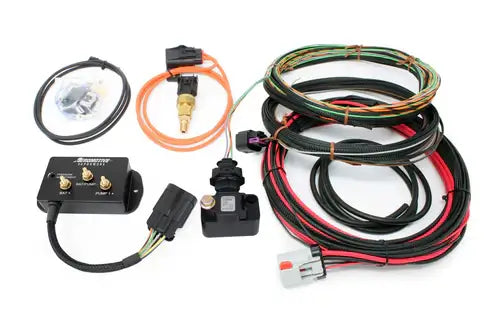

  • Returnless Pulse Width Modulation Kit, Ford Gt Fuel Module $597.35 Details for Returnless Pulse Width Modulation Kit, Ford Gt Fuel Module

Overview
Specifications
Tech Resources
Compatibility

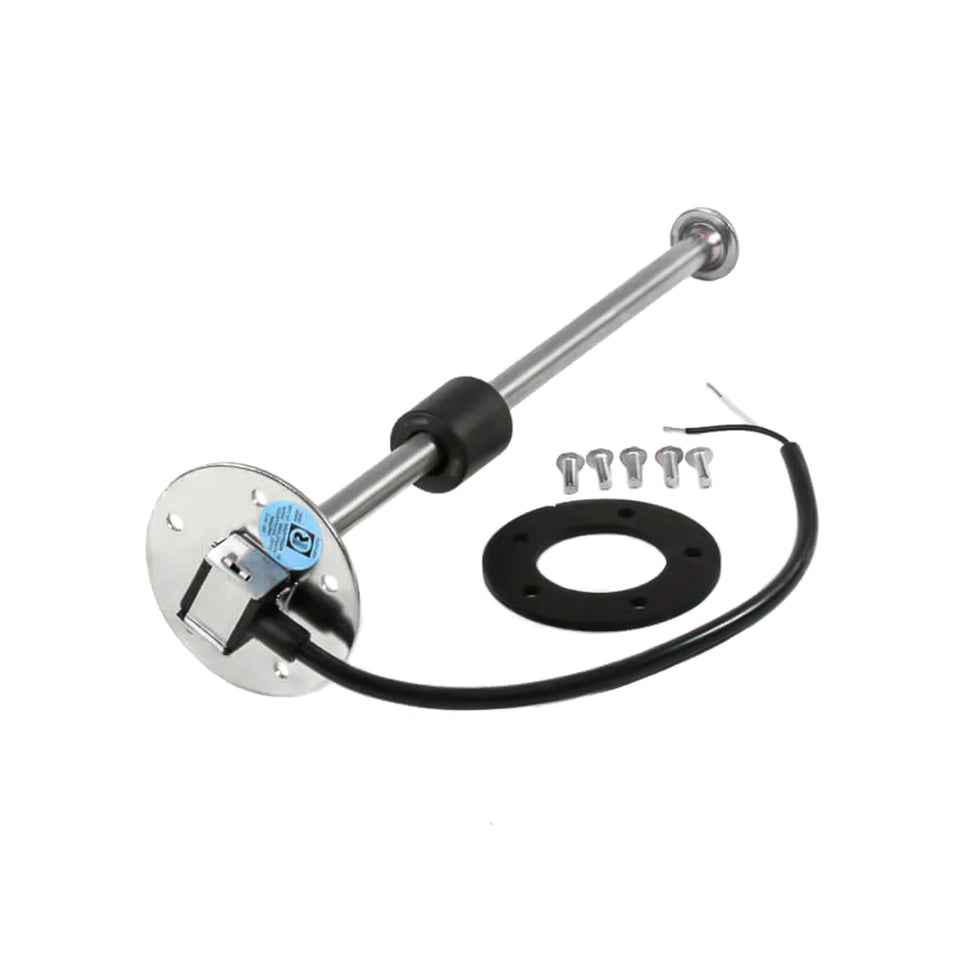

Fuel Sending Unit | SAE 5-Bolt Pattern | Adjustable 5-25" Depth

Get accurate fuel readings every time with sending units engineered to work with any tank setup - whether you're building fresh or upgrading what's already under your classic.

We've got you covered with four different sending units that deliver reliable performance across the board. Every unit features the same quality foundation: SAE 5-bolt pattern, 10-32 stainless steel screws, Buna-N gasket, and an adjustable depth reader that handles tanks from 5 to 25 inches deep.

Reading the Numbers:

The first number = empty OHM reading
The second number = full OHM reading

So when you see 0-90 OHM, you're looking at 0 OHMs when empty, 90 OHMs when full. Straightforward specs that take the guesswork out of matching your gauge to your tank.



    Store part number 33001 (0-90 OHM option)
    Vendor: Boyd Welding
    Type: universal fuel tank sending unit
    Mounting: SAE 5 bolt pattern
    Depth range: adjustable 5 inch to 25 inch
    Ohm range options: 0-90 OHM; 75-10 OHM; 0-30 OHM; 240-33 OHM
    Reading convention: first number is empty; second number is full
    Included: 10-32 stainless steel screws; Buna-N gasket
    Listed price 48.00 USD
    Variant count: 4
    No float material; arm length or operating voltage is published on this listing

    Questions? Talk to the FFG Team

    For fitment questions or build-specific guidance, the FFG team has you covered.

    Email: info@fatfender.com

    Call: (480) 621-6072

    Universal fuel tank sending unit for any tank with an SAE 5 bolt sensor flange and a depth between 5 and 25 inches.
    The correct ohm range depends on your gauge; not your truck. 0-90 ohm suits aftermarket gauges and 75-10 ohm suits stock gauges; 0-30 and 240-33 cover other clusters.
    No vehicle year or model application is published.
