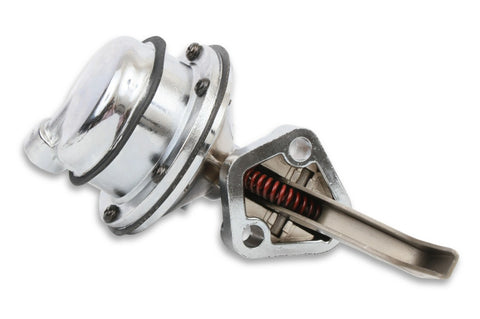

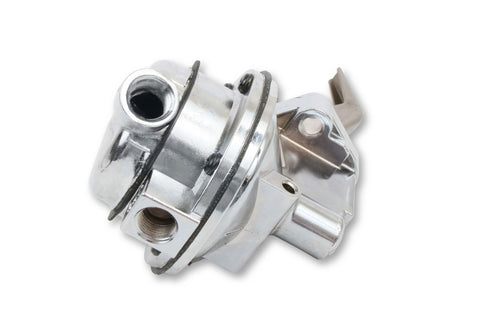

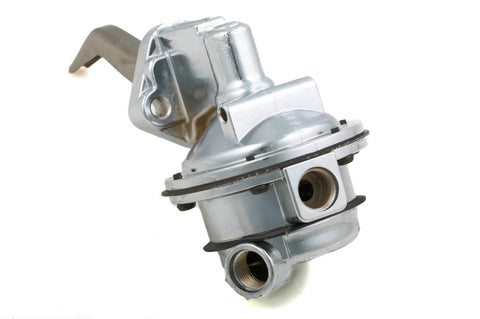

170+ GPH Mechanical Fuel Pump
170+ GPH Mechanical Fuel Pump
170+ GPH Mechanical Fuel Pump
170+ GPH Mechanical Fuel Pump
170+ GPH Mechanical Fuel Pump

170+ GPH Mechanical Fuel Pump

Feed it properly. Then feed it more. Holley mechanical fuel pumps run from 80 GPH to 225 GPH across many applications; and this is the high-output end of street performance - 170+ GPH free flow with redesigned high flow valves that always ensure adequate fuel delivery. Shutoff pressure is pre-set at 8 psi; and because this one moves real volume; a fuel pressure regulator is required. Holley recommends P/N 12-704. Heavy duty construction for continuous high rpm operation; and the fuel body casting rotates to accommodate various plumbing situations - which is what you want when the pump has to live in a chassis nobody planned for.

  • 170+ GPH free flow - the high-output end of the mechanical range.
  • High flow valves - redesigned to always ensure adequate delivery.
  • Rotating fuel body - plumb it the way the chassis actually allows.
  • Heavy duty build - made for continuous high rpm operation.
  • 8AN O-ring ports - a real connection; not a compromise fitting.

Install Level: Intermediate - fuel system plumbing

A fuel pressure regulator is required - Holley recommends P/N 12-704.
Fittings are not included.
8AN O-ring (3/4-16 SAE) inlet and outlet ports.

Holley
SKU: 12-289-20 ISBN:
$233.95
Expert Tech Support
ShopTested Parts
Worldwide Shipping
⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
170+ GPH Mechanical Fuel Pump
$233.95
Overview
Specifications
Tech Resources
Compatibility
Holley mechanical fuel pumps range from 80 GPH to 225 GPH in many various applications to meet the fuel demands of most engines. Whether you are looking for a street performance or an all out race mechanical fuel pump, Holley has the pump you need.

Features:

  • High output fuel flow
  • Flows 170+ GPH free flow
  • Shutoff pressure pre-set at 8 psi
  • Fuel pressure regulator is required (recommend Holley P/N 12-704)
  • Heavy duty construction for continuous high rpm operation
  • Redesigned high flow valves always ensure adequate fuel delivery
  • Fuel body casting can be rotated to accommodate various plumbing situations
  • 8AN O-ring (3/4"-16 SAE) inlet & outlet ports
  • Fittings "not" included
Holley part number 12-289-20
Flow: 170+ GPH free flow
Shutoff pressure: pre-set at 8 psi
Fuel pressure regulator required - Holley recommends P/N 12-704
Ports: 8AN O-ring (3/4-16 SAE) inlet and outlet
Redesigned high flow valves
Heavy duty construction for continuous high rpm operation
Fuel body casting rotates for various plumbing situations
Fittings not included
Holley mechanical fuel pump applications.
Requires a fuel pressure regulator - Holley P/N 12-704 recommended.
8AN O-ring (3/4-16 SAE) inlet and outlet ports.
Tagged for 1967-72 Ford trucks.
