Boyd In-Tank Pump Assembly w Aeromotive 340 Pump

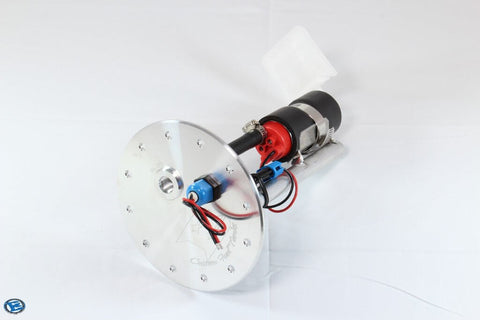

Boyd In-Tank Pump Assembly w Aeromotive 340 Pump – view 2

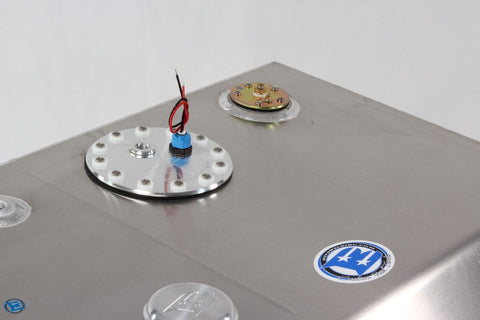

Boyd In-Tank Pump Assembly w Aeromotive 340 Pump – view 3

Boyd In-Tank Pump Assembly w Aeromotive 340 Pump

$403.70

Boyd in-tank fuel pump hanger with an Aeromotive Stealth 340 pump. 12-bolt plate, -6 ORB outlet, built to your tank depth. No return port on the plate, so plan one.

  • Cool and quiet - the pump sits in the fuel, so there's no external pump whine in the cab.
  • Clears the tank floor - each hanger is set slightly short so the pickup never bottoms out.
  • Sealed out of the box - under-ring, gasket and mounting hardware included.

Install Level: Advanced

-6 ORB outlet fitting not included.
Tank needs a 4 in. hole with twelve 0.201 in. holes on a 5.00 in. bolt circle.
Built to your tank depth; not adjustable after the fact.

SKU: 41001

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
Boyd In-Tank Pump Assembly w Aeromotive 340 Pump
$403.70

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 2
  • '-6 ORB 3/8" Barb Fittings for Vapor Trapper $19.99 Details for '-6 ORB 3/8" Barb Fittings for Vapor Trapper
  • FFG Returnless Style Fuel Line System $629.00 Details for FFG Returnless Style Fuel Line System

Overview
Specifications
Tech Resources
Compatibility

Boyd In-Tank Pump Assembly w Aeromotive 340 Pump.

  • Bolt pattern matches any Boyd Welding 12 Bolt Pattern.
  • Requires 4" hole in tank W x12 .201 Thru Holes on 5" BCL
  • Fuel Outlet is a -6 ORB Female, Sometimes referred to as a 9/16-18 Port. See pictures for recommended fitting. (not included)
  • If using this for a custom tank you must have a separate return fitting on the tank. our plate does not have a revision for a return.
  • Includes Under-ring, Gasket, Mounting Hardware

Our EFI Brackets are NOT DIY adjustable length. we build each one specific to the tank depth.  you must measure and select your tank depth. We will assemble the pump hanger slightly shorter than the option you select to account for material thickness and inside dimensions.

For installation instructions and pump specs click here.

Boyd Welding part number 41001
Vendor: Boyd Welding
Pump: Aeromotive Stealth 340
Mounting pattern: Boyd Welding 12 bolt
Tank opening required: 4 inch hole with 12 holes of 0.201 inch through on a 5.00 inch bolt circle
Fuel outlet: -6 ORB female port (9/16-18)
Return provision on the plate: none
Included: under-ring; gasket; mounting hardware
Bracket length: built to the selected tank depth; not field adjustable
Published tank options: Boyd 55-59 C10 Tank; Boyd 60-87 C10 Tank; Boyd 67-72 F100 Tank; Boyd 73-79 F100 Tank; None
Listed price 403.70 USD
Variant count: 5
No flow rating at pressure; current draw or hanger length dimension is published on this listing

Questions? Talk to the FFG Team

For fitment questions or build-specific guidance, the FFG team has you covered.

Email: info@fatfender.com

Call: (480) 621-6072

Fits any Boyd Welding fuel tank cut for the 12 bolt pattern; a 4 inch hole with 12 holes of 0.201 inch through on a 5.00 inch bolt circle.
Select your tank from the published list: Boyd 55-59 C10 Tank; Boyd 60-87 C10 Tank; Boyd 67-72 F100 Tank; Boyd 73-79 F100 Tank.
Custom tanks can be used if the flange pattern matches and the tank carries its own separate return fitting; this plate has no return provision.
The generation tags cover the Ford and Chevy trucks Boyd builds tanks for. The real fitment is the tank and its depth.
