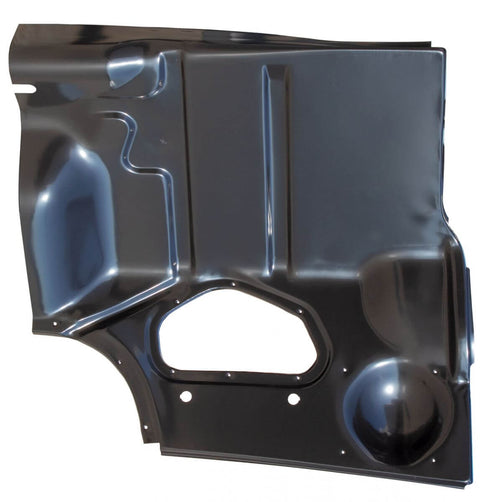

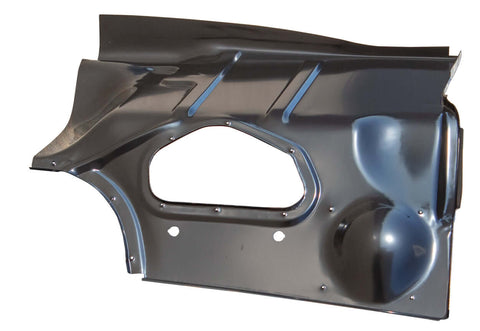

Firewall - LH - 53-56 F100 F250

The driver half. Stamped steel. Holes already in it. The driver side firewall takes the master cylinder; the pedal hangers; the column and most of the wiring. It is also the half that soaks up water off the cowl vent and rots at the bottom where the toe board meets it. This stamping replaces that half outright. Heavy gauge steel formed to the original shapes and bends with the original holes in place. Cutting one side out at a time keeps the cab honest. The half you leave alone holds the dimension while the new panel is fitted and butt welded to it. EDP coating on arrival means you can hang it in the rafters until the chassis work is done. Grind the flange; weld; seal; paint.

  • The busiest half of the cab - master cylinder; pedals; column and wiring all reference this panel.
  • Correct stamped holes - formed in rather than cut by eye on the bench.
  • 19 gauge like original - welds and finishes the same as the steel around it.
  • One side at a time - the untouched half holds your dimensions while you fit this one.
  • EDP coated on arrival - it can wait for the rest of the build without flash rusting.

Install Level: Advanced

This is half of the firewall. The right hand half is part number 370-4553-1R and is ordered separately.
19 ga. steel; EDP coated.
Correct as original shapes; bends and holes.
Welded installation. This is not a bolt-in part.
Published lead time: 2-4 weeks.
Prop 65 warning: this product can expose you to chemicals including lead; sulfur; nickel; chromium; vanadium; titanium and polyvinyl chloride which are known to the State of California to cause cancer or birth defects or other harm.

Auto Metal Direct
SKU: 370-4553-1L ISBN: 54760126
$109.99
⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
Firewall - LH - 53-56 F100 F250
$109.99
Complete your buildThe Next Step for Your Build
Overview
Specifications
Tech Resources
Compatibility

Reproduction firewall half for the 53-56 Ford F100 / F250 trucks. Stamped from heavy gauge steel like original. Each panel features correct as original shapes, bends and holes. Panels arrive EDP coated to help protect against rust and corrosion.



Details

  • LH = Driver side
  • 19 ga. Metal
  • Fits - 1953-1956 Ford F100
  • Fits - 1953-1956 Ford F250


WARNING: This product can expose you to chemicals including but not limited to lead, sulfur, nickel, chromium, vanadium, titanium, polyvinyl chloride and/or 4.4' -methylenebis (2-chloroaniline) which are known to the state of California to cause cancer or birth defects or other harm. For more information, visit www.P64warnings.ca.gov

Auto Metal Direct part number 370-4553-1L
Vendor: Auto Metal Direct
Side: LH = driver side
Material: 19 ga. steel
Finish: EDP coated
Features: correct as original shapes; bends and holes
Sold as: one firewall half
Lead time: 2-4 weeks
Listed price 109.99 USD
Variant count: 2
No overall dimension is published on this listing
Fits 1953-1956 Ford F100 and F250 pickups.
Left hand half only; LH = driver side. The passenger side half is a separate part number.
The only generation tag is Gen: All Ford which carries no fitment; the Ford 1953-56 bucket comes from the published years.
