5.0L Gen 4 Mustang Crate Engine w/ Flywheel
5.0L Gen 4 Mustang Crate Engine w/ Flywheel
5.0L Gen 4 Mustang Crate Engine w/ Flywheel
5.0L Gen 4 Mustang Crate Engine w/ Flywheel

5.0L Gen 4 Mustang Crate Engine w/ Flywheel

$12,650.00

Ford Performance 5.0L Gen 4 Coyote crate engine from the 2024 Mustang GT for classic truck swaps: 480 HP, 415 lb-ft, with engine harness and dual mass flywheel included.

  • Factory 480 HP with factory manners - direct and port injection plus Ti-VCT; it makes power without giving up idle quality or fuel economy.
  • A block built to rev - plasma spray liners; cross-bolted mains and thick bulkheads; 7;150 rpm is the rated peak; not the limit of the hardware.
  • Flywheel already in the box - the dual mass flywheel ships with the engine; one less part number to chase for a manual build.
  • BOSS 302 rods; forged crank - the rotating assembly is the good one from the factory; not an upgrade you buy later.
  • Modular swap parts fit - mount bosses and bellhousing pattern are common to 5.0L modular engines; the aftermarket already supports it.
  • 9.5 quart steel pan - real oil capacity and windage control for sustained high rpm.

Install Level: Advanced

Control pack M-6017-M50D (PCM and vehicle harness) is sold separately.
Alternator, A/C kit, motor mounts and engine cover are not included.
Exhaust manifold supplied for the right side only.

SKU: M-6007-M50D

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
5.0L Gen 4 Mustang Crate Engine w/ Flywheel
$12,650.00

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 4

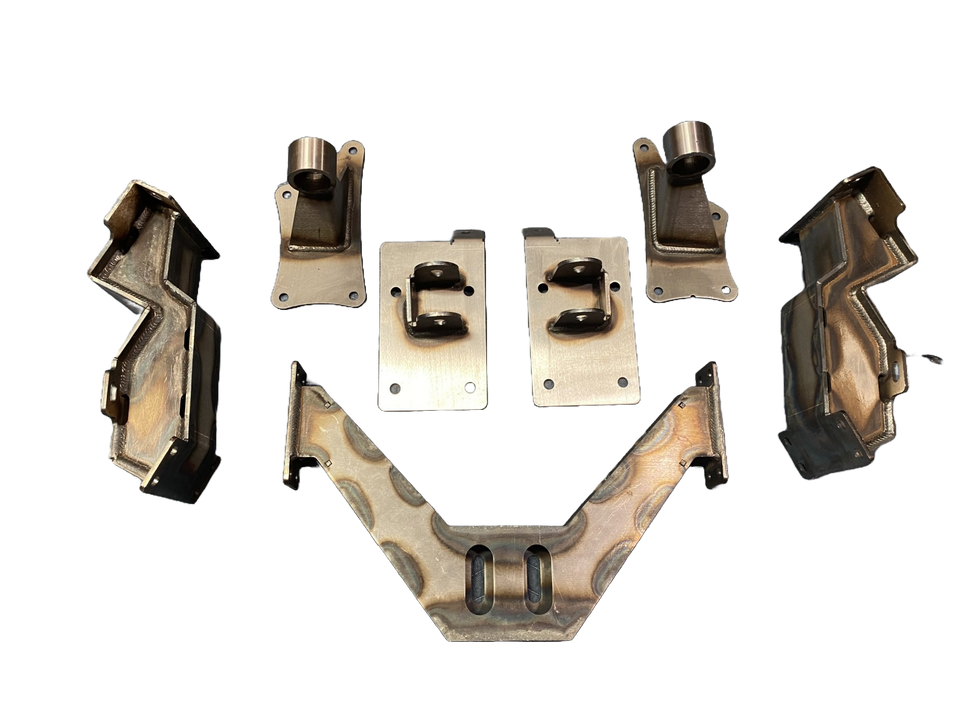

  • FFG Coyote Swap Motor Mount Kit | 1978-79 Bronco 4WD $985.00 Details for FFG Coyote Swap Motor Mount Kit | 1978-79 Bronco 4WD

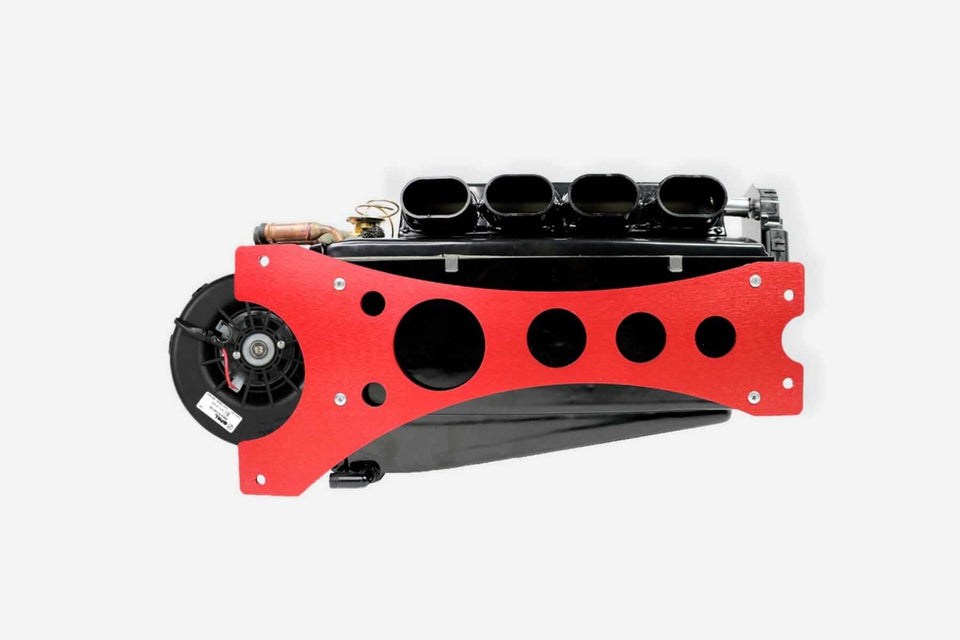

  • Vapir 2 – S Compact Custom Air Conditioning Kit $1,349.00 Details for Vapir 2 – S Compact Custom Air Conditioning Kit

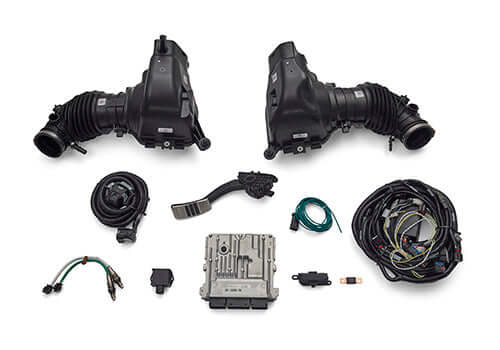

  • 2024 Gen 4 Coyote Control Pack – Automatic Trans $3,040.00 Details for 2024 Gen 4 Coyote Control Pack – Automatic Trans
  • Mustang Headers | 1964.5-70 (For Detroit Speed Aluma-Frame) From $2,274.99 Details for Mustang Headers | 1964.5-70 (For Detroit Speed Aluma-Frame)

Overview
Specifications
Tech Resources
Compatibility
Proudly Made in Canada
  • M-6007-M50D

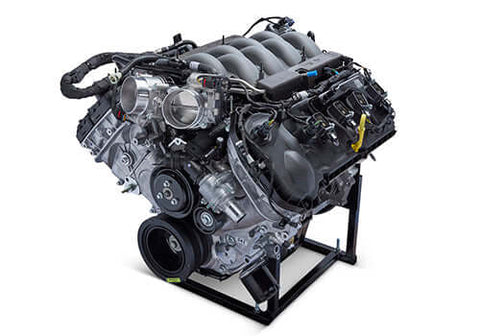

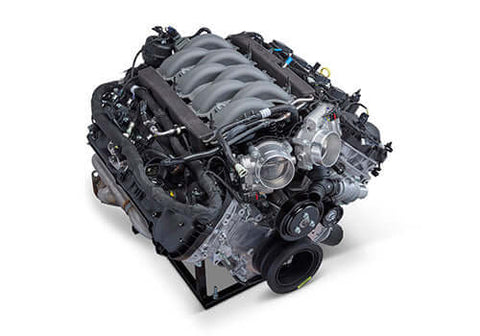

Ford Performance Parts is pleased to announce the latest 5.0L Coyote all-aluminum crate engine from the 2024 Mustang GT.  This modern 5.0L 32-valve DOHC V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a heightened compression ratio to deliver 480 horsepower and 415 lb.-ft. of torque (with premium fuel).

The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
  • 480 Horsepower @ 7,150 rpm
  • 415 lb.-ft. of Torque @ 4,900 rpm
  • 12.0:1 Compression ratio
  • Bore 93 mm x Stroke 92.7 mm
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on BOSS 302 Mustang
  • Forged steel crankshaft
  • Aluminum block which features plasma transferred wire arc spray weld liner coating
  • Longer, 12 mm head bolts for higher clamp load
  • 9.5 qt capacity steel oil pan
  • Tuned composite intake manifold provides efficient air delivery and weight savings
  • Twin 80 mm single bore "drive by wire" electronic throttle bodies with variable runner control
  • High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing

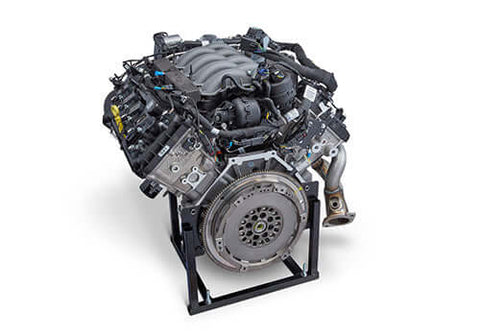

  • Includes engine harness and dual mass flywheel. For engine equipped with automatic flex plate, see M-6007-M50DAUTO
  • Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
  • Mustang GT 409 stainless steel tubular exhaust manifold on the RIGHT SIDE ONLY
  • Vehicle harness and PCM not included
  • Use Ford Performance M-6017-M50D Control Pack which includes wiring, PCM and installation kit, designed for project car installation
  • Does not include alternator, for alternator kit see M-8600-M50BALT or M-8600-M50ALTA
  • 5.0L Coyote air conditioning kit available, see M-8600-M50AC
  • 5.0L Mustang motor mount kit available, see M-6038-M50
  • 5.0L Mustang engine cover kit available, see M-9680-M50D
  • Photo and specs may vary
  • Engine weight: 453 lbs. without front accessory drive components
***Note: driver side exhaust flange utilizes 5.2L pattern***





Ford Performance part number M-6007-M50D
5.0L 32-valve DOHC V8; all aluminum; 2024 Mustang GT specification
480 HP at 7;150 rpm
415 lb-ft of torque at 4;900 rpm
12.0:1 compression ratio
Bore 93 mm x stroke 92.7 mm
Direct and port fuel injection
Twin independent variable camshaft timing (Ti-VCT)
Hypereutectic aluminum pistons
Sintered steel connecting rods as used on the BOSS 302 Mustang
Forged steel crankshaft
Aluminum block with plasma transferred wire arc spray weld liner coating
Cross-bolted main bearing caps; thick main bearing bulkheads
Longer 12 mm head bolts for higher clamp load
9.5 quart capacity steel oil pan
Tuned composite intake manifold
Twin 80 mm single bore drive by wire electronic throttle bodies with variable runner control
High-flow aluminum cylinder heads; DOHC; four valves per cylinder
Includes engine harness and dual mass flywheel
Mustang GT 409 stainless steel tubular exhaust manifold; right side only
Driver side exhaust flange uses the 5.2L pattern
Engine mount bosses and bellhousing pattern common to 5.0L modular engines
Engine weight 453 lbs without front accessory drive components
Requires premium fuel
Listed price 12650.00 USD

Questions? Talk to the FFG Team

For fitment questions or build-specific guidance, the FFG team has you covered.

Email: info@fatfender.com

Call: (480) 621-6072

This is the 2024 Mustang GT 5.0L Coyote sold as a crate engine. No classic truck application is published on this listing.
Engine mount bosses and bellhousing mount pattern are common to 5.0L modular engines; Coyote swap mounts and bellhousings for that family apply.
Includes the engine harness and the dual mass flywheel; the automatic flexplate version is M-6007-M50DAUTO.
Vehicle harness and PCM are not included; control pack M-6017-M50D covers those.
Exhaust manifold is supplied for the right side only and the driver side flange uses the 5.2L pattern; plan your header or manifold accordingly.
Alternator; air conditioning; motor mounts and engine covers are separate Ford Performance part numbers.
