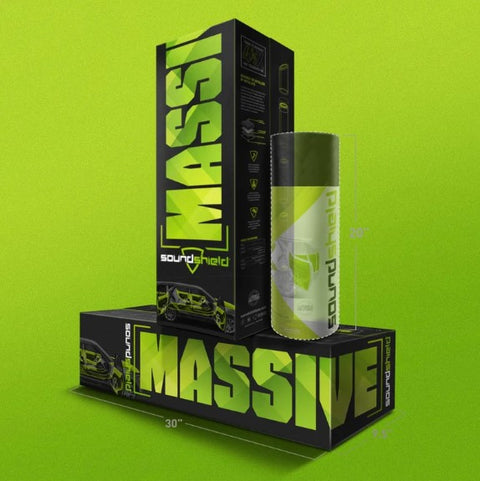

SoundShield® MASSIVE
One sheet. One door. No seams. Anyone who has treated a door with small mats knows the problem - you end up with six pieces; five seams and a strip along the bottom you could not reach. Every seam is a place adhesion can fail and every offcut is material you paid for and threw away. Massive is 48 square ft on one roll; 4.5 mm thick; tall enough to cover a door skin or a floor section in a single piece. Fewer cuts; fewer seams; less packaging on the shop floor. The sheet is three layers doing three jobs: waterproof closed-cell acoustic foam on top for absorption; a heat rejecting foil center; and flexible butyl rubber over a proprietary high-tac pressure sensitive adhesive that grabs on the first press. Waterproof on top matters more than builders expect. A vent that leaks or a wet boot on a floor does not turn the treatment into a sponge that rots the pan underneath. This is the roll to buy first. Then fill in the tight spots with Slim and chase the rattles with WrapIt.
Install Level: Easy
48 square ft per roll; 4.5 mm thick; triple-layer damping sheet.
Waterproof top layer; heat rejecting foil center; flexible butyl rubber; high-tac pressure sensitive adhesive.
Peel and stick; no fasteners or spray adhesive required.
Massive is included in both SoundShield Truck Kits.
SoundShield® offers thicker damping sheets with a waterproof top layer. Our flagship product is 4.5 mm thick with a triple–layer damping sheet. Designed and specifically formulated with our signature waterproof closed–cell acoustic foam top layer, heat rejecting foil center, flexible butyl rubber, and our proprietary pressure sensitive high–tac adhesive underlayment.
Since the launch of SoundShield®, aftermarket shops and installers everywhere have asked for a larger roll that allows for installs in door panels and other expanses in one piece. Bigger trucks or commercial vehicles haver larger panels where a taller roll makes installation faster and more seamless. Not to mention the benefits of less packaging waste and time spent unboxing.
Wrap It - An easy to use peel and stick tape that can be wrapped around items and areas that create acoustic vibrations.
Contour - This kit includes speaker backing pads and our contour cut flex strips to fit a wider range of speaker housing sizes, ready to cut to size for easy install.
Slim - has a thinner profile for applications where saving surface depth is imperative.
Truck Kit Universal - The SoundShield® Truck Kit is a total truck interior soundproofing solution.

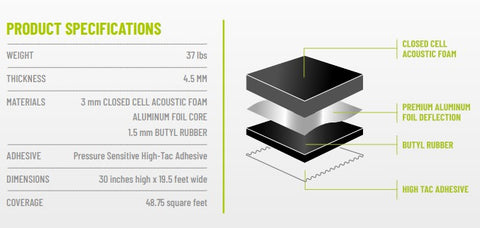

Coverage: 48 square ft per roll
Thickness: 4.5 mm
Construction: triple-layer damping sheet - waterproof closed-cell acoustic foam top layer; heat rejecting foil center; flexible butyl rubber; proprietary pressure sensitive high-tac adhesive underlayment
Waterproof top layer
Format: taller larger roll for treating door panels and large expanses in one piece
Adhesive: pressure sensitive high-tac; peel and stick
Universal application; cut to fit
Listed price 500.00 USD
Variant count 2 against no published option values
No roll width; roll length; weight per square ft or temperature rating is published on this listing
Tagged across 1932-40 through 1992-97 Ford trucks; 1947-54 through 1973-87 Chevy trucks and the 1966-77; 1978-79 and 1992-97 Broncos.
Suited to large expanses - floors; firewalls; door skins; back walls and commercial vehicle panels.
