SoundShield® Original
Eleven square ft of the good stuff. Sized for the job in front of you. Not every panel needs a 48 square ft roll. A transmission tunnel; a pair of kick panels; a cab back behind the seat - those are one-roll jobs; and buying more than you need is just offcuts in the corner of the shop. Original is the same 4.5 mm triple-layer sheet as our flagship: waterproof closed-cell acoustic foam on top; a heat rejecting foil center; flexible butyl rubber over a proprietary high-tac pressure sensitive adhesive. Nothing about the material is downgraded; there is just less of it on the roll. Peel and stick. Cut it with a blade and press it down with a roller. Single roll or a four pack when you are working through a whole cab a panel at a time. Buy the roll count you need; then treat the panel properly rather than stretching thin material across it. Note before you order: the description on this listing is our MASSIVE copy. Original is the 11 square ft roll.
Install Level: Easy
11 square ft per roll; 4.5 mm thick; triple-layer damping sheet.
Waterproof top layer; heat rejecting foil center; flexible butyl rubber; high-tac pressure sensitive adhesive.

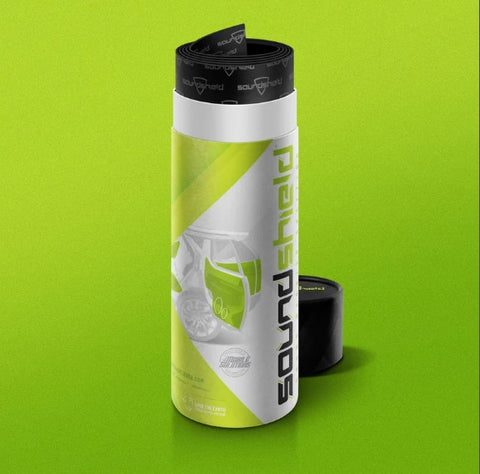

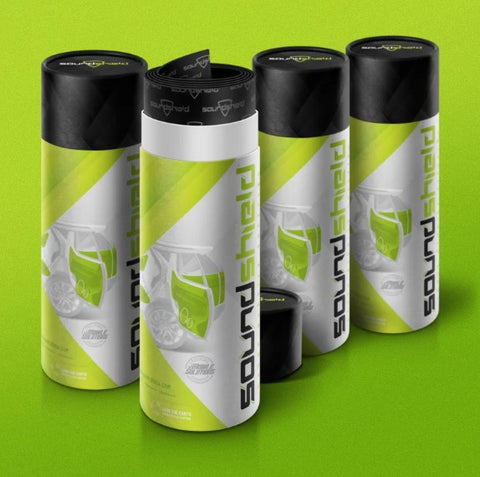

Two quantities published: Single Roll and 4 Pack.
Peel and stick; no fasteners or spray adhesive required.
Original rolls are included in both SoundShield Truck Kits - two rolls in the 1953-56 kit and one in the universal kit. The kits also call this roll a Classic roll.
SoundShield® offers thicker damping sheets with a waterproof top layer. Our flagship product is 4.5 mm thick with a triple–layer damping sheet. Designed and specifically formulated with our signature waterproof closed–cell acoustic foam top layer, heat rejecting foil center, flexible butyl rubber, and our proprietary pressure sensitive high–tac adhesive underlayment.
Since the launch of SoundShield®, aftermarket shops and installers everywhere have asked for a larger roll that allows for installs in door panels and other expanses in one piece. Bigger trucks or commercial vehicles haver larger panels where a taller roll makes installation faster and more seamless. Not to mention the benefits of less packaging waste and time spent unboxing.
Wrap It - An easy to use peel and stick tape that can be wrapped around items and areas that create acoustic vibrations.
Contour - This kit includes speaker backing pads and our contour cut flex strips to fit a wider range of speaker housing sizes, ready to cut to size for easy install.
Slim - has a thinner profile for applications where saving surface depth is imperative.
Massive - 48 square ft 4.5 mm thick with a triple–layer damping sheet.
Truck Kit Universal - The SoundShield® Truck Kit is a total truck interior soundproofing solution.

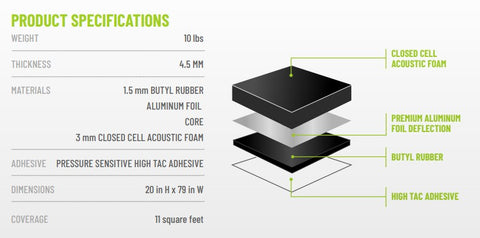

Coverage: 11 square ft per roll
Thickness: 4.5 mm
Construction: triple-layer damping sheet - waterproof closed-cell acoustic foam top layer; heat rejecting foil center; flexible butyl rubber; proprietary pressure sensitive high-tac adhesive underlayment
Waterproof top layer
Quantities published: Single Roll or 4 Pack
Adhesive: pressure sensitive high-tac; peel and stick
Universal application; cut to fit
Listed price 120.00 USD for the Single Roll
Variant count 4 against two published option values
No roll width; roll length; weight per square ft or temperature rating is published on this listing
Tagged across 1932-40 through 1992-97 Ford trucks; 1947-54 through 1973-87 Chevy trucks and the 1966-77; 1978-79 and 1992-97 Broncos.
Suited to single panels - tunnels; kick panels; cab backs and door skins.
