Classic Update Harness | Chevy Truck (1955-59)
06/01/22 update: - We are currently running about 2-4 week lead time on drop ship orders.
This Classic Update Harness comes with everything you need for your 1955-59 Chevy truck, including color schematics and easy to understand instructions for an easy install. For the full list of features, please read our provided details.
- Accessory disconnect provided for connections to power windows, power seats, cruise control, fuel pump, power door locks, extra radio (CB), or optional power accessory.
- The new floor dimmer switch is provided. Wire length and connection accommodate the original floor mount dimmer switch.
- Standard turn signal flasher, hazard flasher, and horn relay mounted on fuse panel.
- Fuse box and custom mounting plate are designed for bolt-in under dash installation. All required hardware supplied. Location selected for easy accessibility and clearance of under dash accessories such as all gauge packages, wiper systems, heating, and air conditioning systems, and stock original or aftermarket GM tilt steering columns.
- Original dome light wiring, as well as additional door jamb switches and under dash lighting, are provided.
- Steering column connectors will plug directly into most aftermarket steering columns as well as 1969 and later GM columns which utilize stock GM turn signal switches. The original column can also be wired by using the supplied mating connector and terminals.

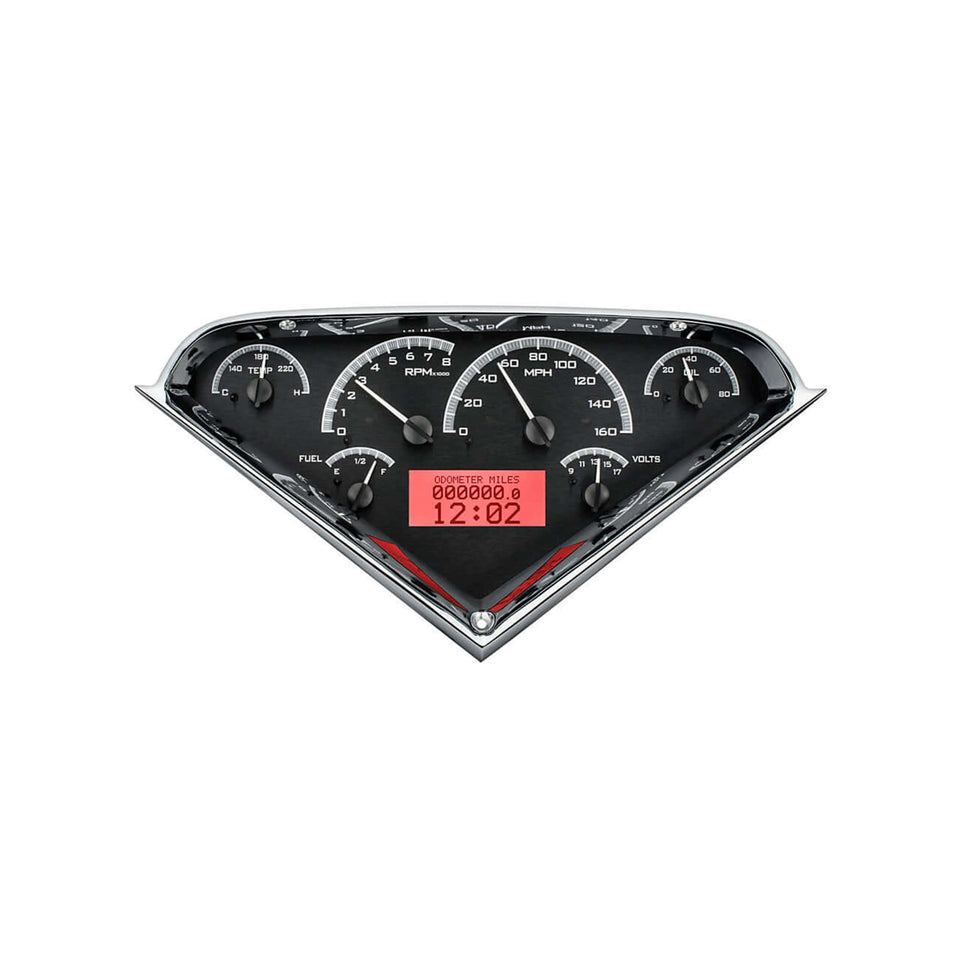

- Instrument Cluster wiring is designed with a “cluster harness disconnect” system for easy service and assembly. All original terminals, connectors, and light sockets are also supplied for original cluster gauges. However, the best aspect of the disconnect system is that any gauge cluster package can be easily and neatly wired in. This includes AUTOMETER, CLASSIC INSTRUMENTS, DAKOTA DIGITAL, STEWART WARNER, and VDO, just to name a few.
- Heater control panel lighting, power, and blower motor leads are included for original style heaters as well as aftermarket heat and AC updates such as HOTROD AIR, VINTAGE AIR, etc. Connections are also wired in for the glove box and cigarette lighter.
- Replacement headlight switch with internal circuit breaker included. Retention collar nut, adjustable length shaft, and custom knob are also included. Extra connectors and instructions are supplied for the installation of original headlight switches.
- Front lighting includes extra long leads for special routing when custom under hood appearance is desired. All headlight, park light, and directional light connectors and terminals are provided, as well as a switched trigger wire for electric fan relay (usually recommended with AC).
- Rear body harness assembly is designed to plug into the main harness in the original position utilizing existing retainers. Flexibility in harness design allows for original or custom routing. Both pickup and suburban models are accommodated. Rear body wiring includes backup light wires and mating connectors for backup light leads. License plate lead, connectors, and terminals included. Fuel tank sender wire and terminal included. Leads and terminals included for jamb switches and dome light.
- Engine wiring includes connectors for points type and H.E.I. distributors. Power and tach connectors supplied for GM H.E.I. distributors. Alternator connectors are supplied for GM “SI” series internal regulated and all “one wire” alternators. GM “CS” series alternator connector is available separately.
- Engine wiring includes starter and gauges sender leads for water temp, oil pressure, voltmeter, and tach. Heavy 8 gauge alternator leads are supplied. Power circuits are fusible links protected.
- The new ignition switch is included. Additional connectors and instructions are provided to use the original ignition switch or column mounted ignition switch.
