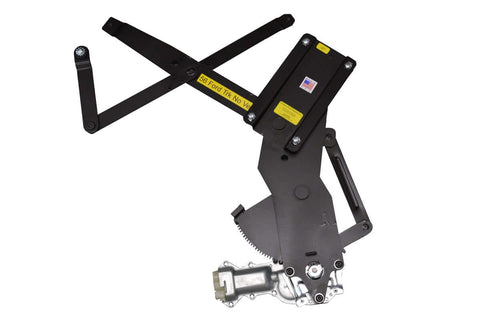

1956 Ford Truck Front Door Power Window Kit - One Piece Glass

1956 Ford Truck Front Door Power Window Kit - One Piece Glass

5.0 (2 reviews)

$834.00

1956 Ford truck front door power window kit for one piece glass. Left and right regulators, two new ACI motors and lower glass channels for the extended glass.

  • Bolts to the original holes - the regulator goes where the factory one came out; no drilling the door skin.
  • New ACI motors - not rebuilt units; the motors are the part that decides whether the window still works in ten years.
  • 1018 cold roll steel regulators - built from stock that holds its shape under load instead of flexing at the pivot.
  • Bronze Oilite bearings and 4130 gear plates - lubricated pivots and heat treated teeth; the two places a window regulator normally dies.
  • Channels for one piece glass - the lower glass channels that support the taller glass come in the kit.
  • Lifetime warranty - backed for as long as you own it with your receipt.

Install Level: Moderate

ACI motors are reverse polarity; reverse polarity switches required.
Choose switch option at checkout; switch kits include conduit.
30 amp fuse or circuit breaker needed.
2 week lead time.

SKU: 75681-200

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
1956 Ford Truck Front Door Power Window Kit - One Piece Glass
From $834.00

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 4
  • 70 Amp Power Supply Kits $247.95 Details for 70 Amp Power Supply Kits

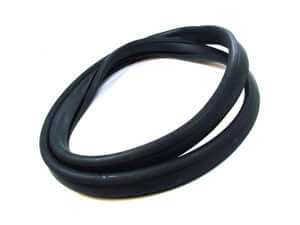

  • Rear Window Weatherstrip Seal, Without Trim Groove | Ford 1956 $97.92 Details for Rear Window Weatherstrip Seal, Without Trim Groove | Ford 1956
  • Door Weatherstrip Seal, Right Hand | Ford 1956 $54.19 Details for Door Weatherstrip Seal, Right Hand | Ford 1956
  • Billet Aluminum Door Handle Gaskets $15.00 Details for Billet Aluminum Door Handle Gaskets

Overview
Specifications
Tech Resources
Compatibility
If you add a switch kit, conduit will be included at no additional charge. If no switches are required, motor plugs
and terminals will be included. If you choose Nu-Crank Switches - consider adding a master switch to control other windows.

Note: These ACI motors are reverse polarity motors and require reverse polarity switches.

Details

  • 2 front door regulators (left & right side)
  • 2 new ACI motors
  • Lower glass channels to support the extended glass
  • Bolt into original mounting holes
  • Front vertical channels.
  • Uses Stock Channels
  • Works with the curved glass of the 1960's and 1970's
  • New ACI Motors
  • Regulators are made on 1018 cold roll steel
  • Bronze Oilite ® thrust bearings at pivots (Made in USA) to keep them lubricated
  • 4130 Heat Treated gear plates for longer tooth life and better wear
  • Multiple power window switch options.
  • Lifetime warranty (Warranty requires copy of sales receipt or invoice.)



 New ACI Motor AMP Draws

No Load amps Low Load amps High Load amps Stall amps
3 5 11 20
ACI Motors are Reverse Polarity
This means that the ground for the system must come out of the master switch. There are 2 poles on the motor - to make it operate,
you must put power to one side then ground to the other side - NOT to the motor case. This will result in the motor turning in one direction.
By swapping the wires from side to side, the direction will change.

Fuses or Circuit Breakers - 30 AMP
Most of our harnesses will come with an in-line 30 AMP fuse. If you prefer, a circuit breaker will work too.
You can hook your windows up to a varity of different power sources.
Some options are: Straight to the battery (Windows should not have any battery draw when not in use).
 Find extra slot in fuse panel - tie in using the supplied fuse.
 Pull power from the key-on side of the switch

Relays
In most cases, you will not need to use a relay to boost amperage to the motors. The switches and wiring we use can handle the amp draws.

If you are using old style 3 pole switches, a special relay is needed to reverse the polarity at the motor. These do not increase amperage,
they just swap the ground from side to side. we have these available (prewired). Call us at 336-699-8949 for assistance.

Grease & Oil
1. On the regulator gear teeth and roller tracks, we recommend using a high temp automotive wheel bearing and chassis lubricant.
NLGI grade 2 is one option
2. Avoid the older soap based lithium grease - it sets up hard in cold weather making the windows harder to move
3. A few drops of light weight oil in the pivot points will allow the Bronze Oilite ® bushings to work smoothly and reduce wear.
4. On fuzzy runs and weather stripping - some 3M Silcone spray can help with break in
5. Use Die-Electric grease or Tuner Lube on all terminals and connections. This protects against moisture and corrosion.


Nu-Relics part number 75681-200
Vendor: Nu-Relics
Contents: 2 front door regulators - left and right side
Contents: 2 new ACI motors
Contents: lower glass channels to support the extended glass
Contents: front vertical channels
Mounting: bolts into original mounting holes; uses stock channels
Regulator material: 1018 cold roll steel
Bearings: bronze Oilite thrust bearings at the pivots; made in USA
Gear plates: 4130 heat treated
Motor polarity: reverse polarity ACI motors
ACI motor amp draw: 3 amps no load; 5 amps low load; 11 amps high load; 20 amps stall
Circuit protection: 30 amp fuse or circuit breaker
Switch options: 10 published switch configurations
Warranty: lifetime; requires a copy of the sales receipt or invoice
Lead time: 2 weeks
Variant count: 10

Questions? Talk to the FFG Team

For fitment questions or build-specific guidance, the FFG team has you covered.

Email: info@fatfender.com

Call: (480) 621-6072

Fits 1956 Ford truck front doors running one piece glass.
Supplies both front door regulators; two new ACI motors and the lower glass channels that carry the extended glass. Uses stock channels and the original mounting holes.
This listing carries only a Gen: All Ford tag; the 1953-56 generation bucket here reflects the published 1956 year range.
The vendor paragraph about curved glass of the 1960s and 1970s is boilerplate across the Nu-Relics line and does not restate this kit application.
