HDX Instrument Gauge System | Chevy Pickup (1967-72)

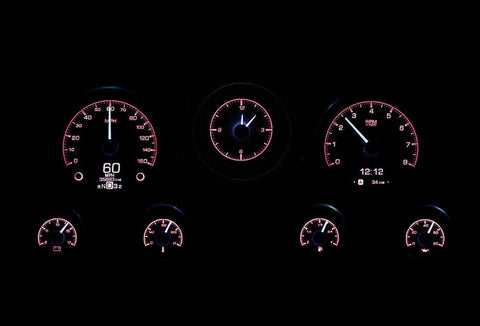

The high-water mark of classic trucks, 1967-72 GM pickups have been, and always will be, the favorite. The original seven-hole cluster offers plenty of room, so why not fill it with the best? Six analog gauges plus a clock and twin TFT message centers make use of the space, ensuring the driver is in the know. System fits stock or reproduction dash bezel, available separately.

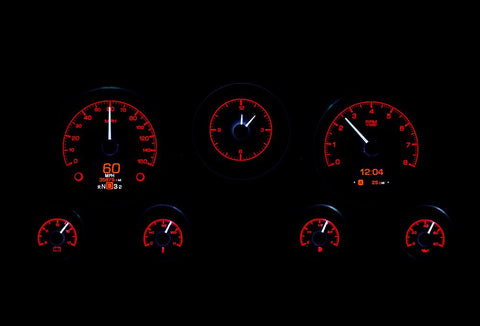

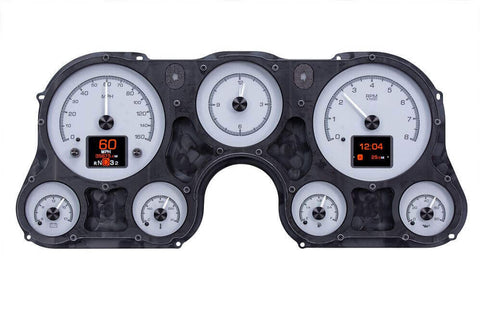

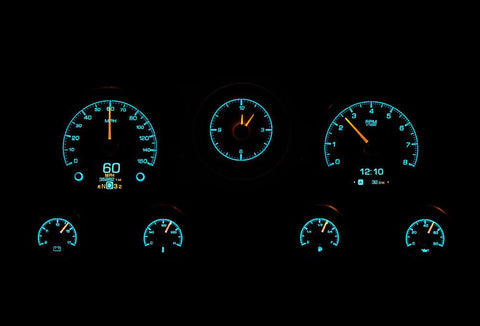

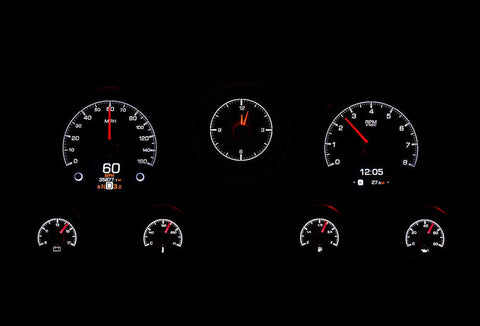

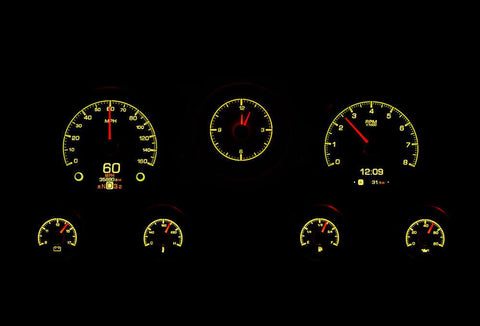

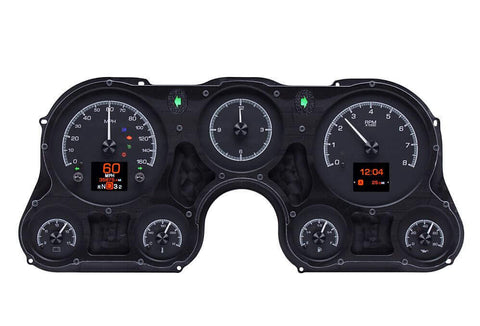

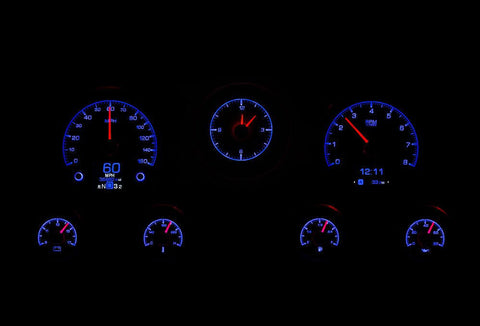

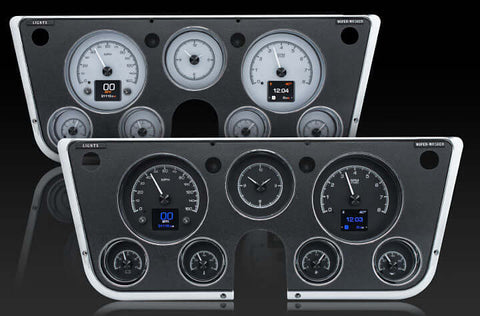

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.

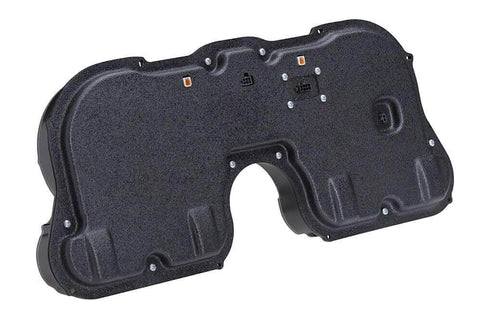

All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

Note: Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

 DOES NOT FIT GMC PICKUPS

Dakota Digital part number HDX-67C-PU-K
Vendor: Dakota Digital
Series: HDX
Cluster: six analog gauges plus a clock and twin TFT message centers in the seven-hole cluster
Face styling: black alloy or silver alloy
Independent illumination color selection for gauge readings; needles and message centers
Built-in capacitive-touch buttons for calibration and personal settings
Optional Bluetooth app control for Apple and Android devices
Needle hubs: black nickel plated spun aluminum to match the buttons
Dead-faced indicators: turn signals; high beam; check engine; cruise control; parking brake plus two user-definable
Red settable warning light on every gauge
Central control box; vehicle-harness sourced signals
Solid state sending units supplied
Included: mounting hardware
Listed price 1725.00 USD
Variant count: 14
No published cluster depth; amperage draw or harness length on this listing

Fits the 1967-1972 Chevrolet C10; C20; C30; K10 and K20 Pickup as published; part number HDX-67C-PU-K.
Chevrolet application only. The same-year GMC truck is excluded by the manufacturer.
Cluster layout: six analog gauges plus a clock and twin TFT message centers in the seven-hole cluster.
Bezel not included. System fits the stock or reproduction dash bezel; available separately.
