1973-79 Ford Truck EFI Fuel Tank and Fuel Pump
5.0 (1 review)$817.00

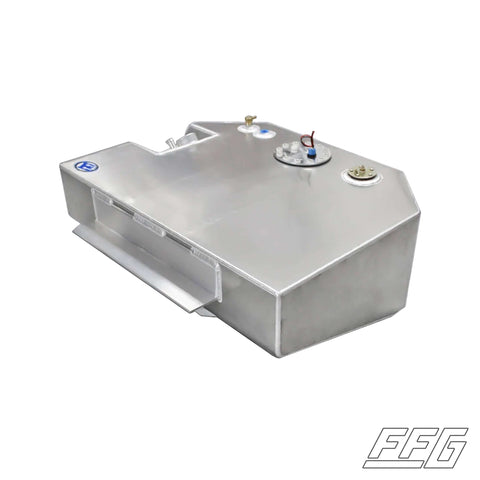

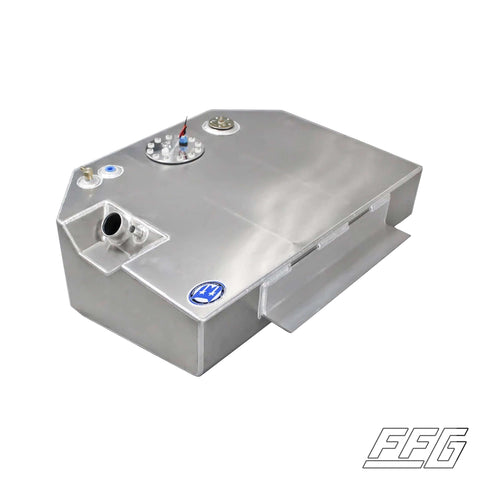

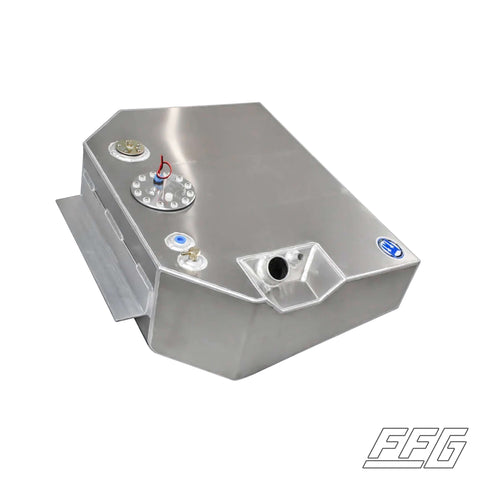

EFI fuel tank for 1973-79 Ford trucks with an Aeromotive Stealth 340 pump installed. About 23 gallons of 5052 aluminum, mounted behind the axle with the stock fill.
Install Level: Advanced
Fuel sending unit is not included. Use 0-90 ohm for aftermarket gauges or 75-10 ohm for stock gauges.
Fuel line, fittings, filter, pump wiring and relay are not included.
Built to order. Lead time 4-6 weeks.
SKU: FFG-F7379-EFITank-340
Finish the Build Right
Parts our crew pairs with this kit so your swap goes together right the first time.
-
Boyd In-Tank Pump Assembly w Aeromotive 340 Pump
$464.50
Details for Boyd In-Tank Pump Assembly w Aeromotive 340 Pump
Boyd In-Tank Pump Assembly w Aeromotive 340 Pump $464.50 -

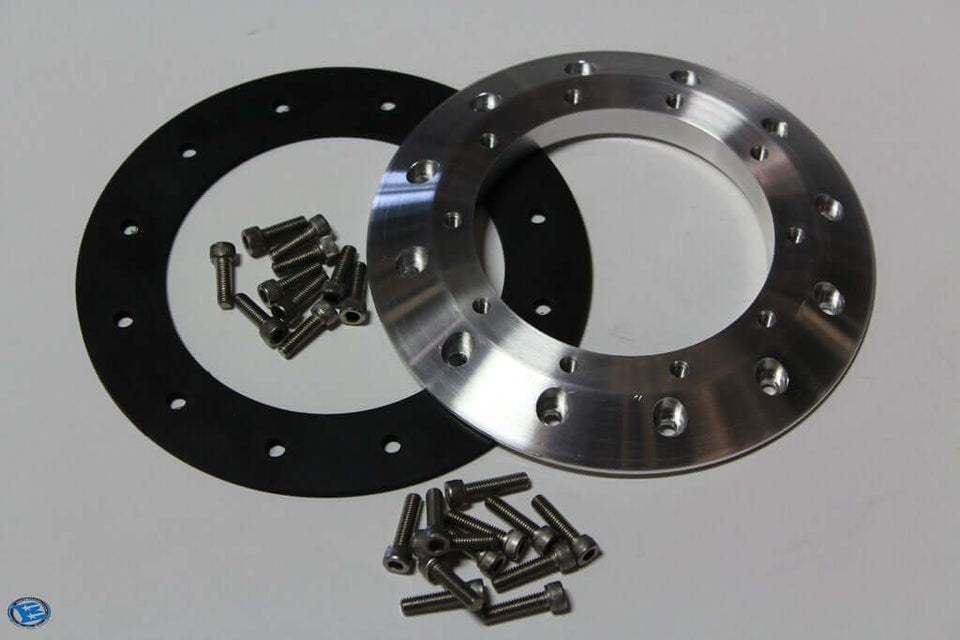

12 Bolt EFI to Aeromotive 10 Bolt Stealth Adapter Plate
$66.70
Details for 12 Bolt EFI to Aeromotive 10 Bolt Stealth Adapter Plate
-
Push Fuel Cap and Adapter
$81.99
Details for Push Fuel Cap and Adapter
-
FFG Billet Aluminum Wood Bed Fuel Door
From $204.99
Details for FFG Billet Aluminum Wood Bed Fuel Door
FFG Billet Aluminum Wood Bed Fuel Door From $204.99
Fitment Note: This tank is designed to fit between the stock frame rails and works with the stock suspension. On some applications, the rear crossmember may need to be relocated to fit this fuel tank properly.
1973-1979 Ford Fuel Tank, Stealth EFI, 340 LPH Fuel Pump included. This tank is approx. 22 gallons with a side pocket fill. Sending unit featured in photos is not included. This tank mounts in the stock behind axle location using the stock fill location.
Aeromotive Stealth 340 in-tank pump and safety rollover vent are included.
Don't forget to add: Our fat fender Push Fuel Cap and Adapter and effortlessly convert Boyd 2" NPSM necks to OEM style caps.
Description

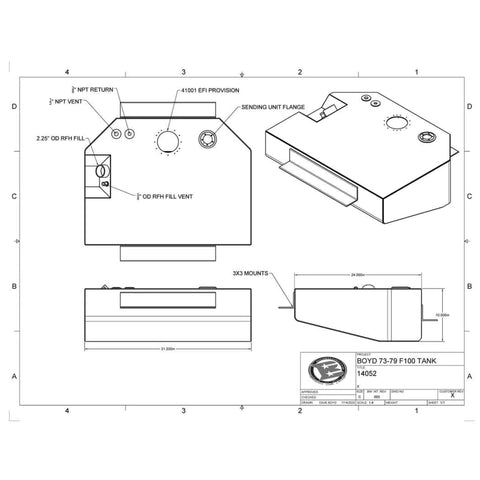

- Tank Material: 1/8” 5052-H32 Aluminum
- Tank Dimensions: 31.5” x 24” x 10” Taper to 6”
- Approx Gallons: 23
- 2.25” Ribbed for Hose
- 5/8” Ribbed for Hose Fill Vent
- ½” NPT Tank Vent
- Boyd 41001 In-Tank Aeromotive Pump
- 3/8” NPT
- Sending unit Flange
- 3 baffles
- 3 x 3 x 3/16 Angle x2 places mount tabs
Fuel Pump: This assembly includes the Stealth 340 pump for plenty of fuel pressure for your fuel injected projects. This is a great setup for Sniper, FiTech, and other fuel injection setups. Our in-tank Aeromotive 340 Stealth Fuel Pump supports up to 700 HP EFI – Forced Induction or 850 HP EFI – Naturally Aspirated. Click Here for Pump Specs.

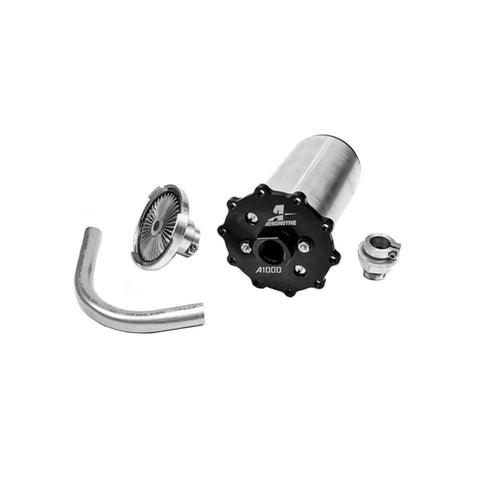

A1000 In-Tank Pump Upgrade: Fat Fender Garage is happy to offer a new in-tank fuel pump option for your high-horsepower & forced induction applications. You can now purchase this A1000 Aeromotive in-tank pump, with the Boyd 12-Bolt EFI to Aeromotive 10-Bolt Stealth Adapter Plate for an easy bolt-in upgrade. Click Here for Pump Specs.
Fuel Level Sensor: We recommend one of two sending units to fit your needs; A 0-90 OHM fuel level sensor for aftermarket gauges or a 75-10 OHM fuel level sensor if you are using stock gauges with our Coyote Swap tanks.
Rollover Safety Vent: We also include the rollover safety vent, which is a simple ball check valve that allows air in and out of the tank as needed. In the event of a rollover, the ball will drop and block the vent port from leaking fuel. Additionally, it also has a small float inside that will help reduce the amount of liquid entering the vent hose from fuel slosh during normal everyday use.
Vendor: Boyd Welding
Tank material: 1/8 inch 5052-H32 aluminum
Tank dimensions: 31.5 inch x 24 inch x 10 inch taper to 6 inch
Approximate capacity: 23 gallons as listed in the specification; the description text reads 22 gallons
Mounting: stock behind axle location using the stock fill location
Fuel fill: 2.25 inch ribbed for hose
Fill vent: 5/8 inch ribbed for hose
Tank vent: 1/2 inch NPT
Return: 3/8 inch NPT
Pump: Boyd 41001 in-tank Aeromotive Stealth 340; included
Stealth 340 rating: up to 700 HP EFI forced induction or 850 HP EFI naturally aspirated
Optional pump: Aeromotive 18309 Dual Phantom 340
Sending unit flange: yes
Baffles: three
Mount tabs: 3 x 3 x 3/16 angle in two places
Included: safety rollover vent
Lead time: 4-6 weeks; built to order
Listed price 817.00 USD with the standard Stealth 340
Mounts in the stock behind axle location using the stock fill location.
For fuel injected engines: modern EFI swaps and bolt on systems such as Holley Sniper and FiTech.
Built to order with a 4-6 week lead time.
