BluePrint 376 LS engine and ZF 8HP70 8-speed transmission in Blue Titanium Cerakote, side profile on a display cart, by Fat Fender Garage

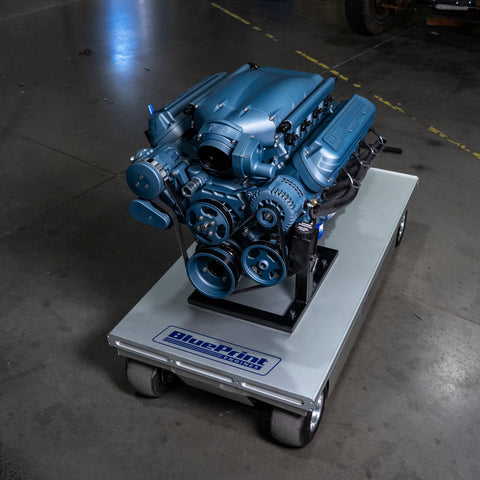

Color-matched Cerakote front runner drive with pulleys, alternator and balancer on a BluePrint 376 LS engine

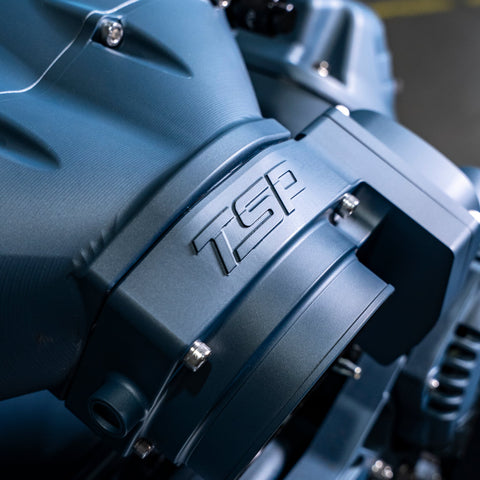

Close-up of the TSP intake and throttle body inlet in Blue Titanium with 10% Black Cerakote on a BluePrint LS engine, by Fat Fender Garage
Specs & Fitment Ask a Specialist

BluePrint Engine by FFG: Cerakoted LS + ZF 8-Speed Package

$34,999.00

A complete BluePrint drivetrain: 530 HP LS, ZF 8-speed and matched electronics. Finished in our shop and delivered show-ready, with full BluePrint warranty coverage.

  • Dyno-proven 530 HP - 495 ft-lbs. The dyno sheet ships with it.
  • ZF 8HP70 behind it - 0.2-second shifts. Manual mode. Electronic shifter.
  • Finished in our shop - Cerakoted and color matched as one system.
  • Your color, your build - Blue Titanium with 10% Black, Titanium, Tungsten, Stainless, Burnt Bronze, Armor Black, Gun Metal Grey, Tactical Grey, Glacier Gold, Flat Dark Earth.
  • Electronics matched - engine and trans controls. Plug and play.
  • Warranty intact - long block stays sealed. 3 years / 30,000 miles.
  • One order - no chasing five vendors to finish one swap.

Install Level: Professional

Flat-rate freight is $2,500, USA only. Contact us for a quote outside the US.
Flexplate not included.
Runs on 91+ octane.
Confirm fitment with FFG before you order.
Professional install protects the finish and the warranty.

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
BluePrint Engine by FFG: Cerakoted LS + ZF 8-Speed Package
$34,999.00

530 HP · ZF 8-Speed · Show-Finished, Ready to Install

530 HP. ZF 8-speed. Show-finished and ready to install. One package, one warranty, no guesswork.

BluePrint builds the engine and proves it on the dyno. FFG finishes it in our shop. You get the complete drivetrain in one order, under one warranty.

Build the Truck, Not the Vendor List

Most LS swaps mean five vendors. Engine builder. Transmission. Electronics. Finisher. Warranty. Parts arrive wrong, nobody talks to each other, and the finish you pictured isn't on the menu.

This package ends that. BluePrint matches a dyno-proven 530 HP LS to a ZF 8HP70 and bundles the electronics. FFG Cerakotes the whole assembly as one system. It ships finished, documented, and warranted.

The Engine

376 cubic inches. GM LS compatible. BluePrint cast iron LSX-style block with 6-bolt mains, aluminum PS8015 heads, a hydraulic roller cam, and 10.7:1 compression.

Fuel injected with drive-by-wire and a full harness. The long block stays factory-sealed, so BluePrint's 3-year / 30,000-mile warranty stays intact.

The Transmission

ZF 8HP70. 0.2-second shifts. Manual mode. Electronic shifter. The same transmission family BMW, Ram, and Jaguar run — modern drivability behind classic iron.

The Finish

Engine, transmission, front runner, and accessories. Cerakoted in our shop and color matched as one system. Pop the hood and it reads as one build, not a pile of parts.

The feature color is Blue Titanium with 10% Black, built for BluePrint's SEMA booth. Or match your build with one of nine more:

  • Titanium
  • Tungsten
  • Stainless
  • Burnt Bronze
  • Armor Black
  • Gun Metal Grey
  • Tactical Grey
  • Glacier Gold
  • Flat Dark Earth

Want something else? Ask.

What's Included

  • BluePrint 376 LS — 530 HP / 495 ft-lbs, dyno-proven
  • ZF 8HP70 8-speed automatic
  • Matched engine and transmission electronics, plug and play
  • Color-matched front runner / front drive system
  • Full Cerakote finish — engine, transmission, accessories
  • Oil pan and windage tray, balancer, plugs and wires, coil packs
  • Throttle pedal, bell housing, crossmember mount, 1350 yoke
  • Dyno sheet
  • BluePrint warranty — 3 years / 30,000 miles

Not included: flexplate. Fuel: 91+ octane.

Confirm Fit. Then Build.

This isn't a universal drop-in. Talk to us before you order and we'll confirm chassis, transmission tunnel, and mount clearances for your build. Have a professional install it — it protects the finish and the warranty.

Flat-rate freight: $2,500 (USA only).

Outside the United States or in a non-standard delivery region? Contact us for a shipping quote.

Build yours. Contact FFG.

BluePrint and BluePrint Engines are trademarks of BluePrint Engines, used with permission. Specifications and pricing subject to change.

Displacement: 376 c.i.; GM LS compatible
Power: 530 HP / 495 ft-lbs; dyno-proven
Block: BluePrint cast iron; LSX-style; 6-bolt mains; 4.0662 inch bore
Heads: BluePrint aluminum PS8015; 69cc chambers; 2.165 / 1.590 inch valves
Cam: hydraulic roller; .612 / .585 inch lift; 225 / 238 degrees @ .050; 113 degree LSA
Compression: 10.7:1
Rotating assembly: hypereutectic flat-top pistons; nodular iron crank; forged rods
Induction: fuel injected; drive-by-wire throttle body; full harness
Transmission: ZF 8HP70 8-speed automatic
Shift speed: 0.2 seconds
Transmission features: manual mode; electronic shifter
Finish: Cerakote; applied in-house at FFG - engine; transmission; front runner; accessories
Feature color: Blue Titanium with 10% Black
Additional colors: Titanium; Tungsten; Stainless; Burnt Bronze; Armor Black; Gun Metal Grey; Tactical Grey; Glacier Gold; Flat Dark Earth
Included: oil pan and windage tray; balancer; plugs and wires; coil packs; throttle pedal; bell housing; crossmember mount; 1350 yoke; dyno sheet
Not included: flexplate
Warranty: 3 years / 30,000 miles - BluePrint factory coverage
Fuel: 91+ octane
Flat-rate freight 2500 USD; USA only
Not a universal drop-in. Talk to us before you order and FFG will confirm chassis fit; transmission tunnel clearance and mount requirements for your build.
GM LS compatible. 376 c.i.; 6.2L displacement class.
ZF 8HP70 with a 1350 yoke included. Build your driveshaft to it.
Bell housing included. Confirm it works with your chassis.
Crossmember mount included. Some chassis need modification.
Drive-by-wire throttle body with matching pedal included.
Flexplate not included. Source one for your application.
91+ octane only.
Flat-rate freight 2500 USD within the USA; contact for a quote elsewhere.
Tech questions; warranty documentation or Cerakote color selection? Contact FFG at www.fatfender.com and we'll get you sorted before the order goes in.
