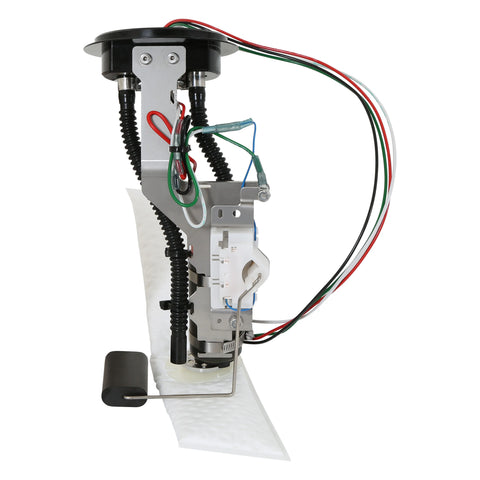

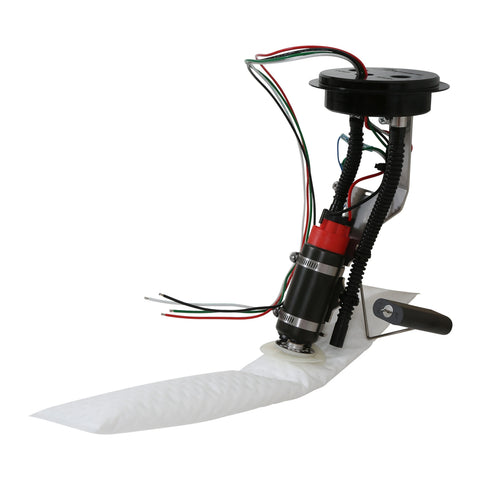

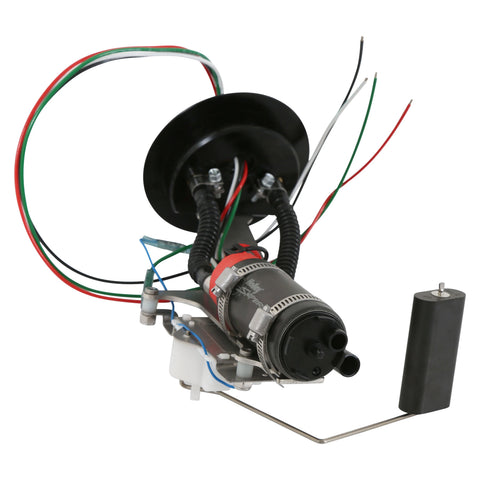

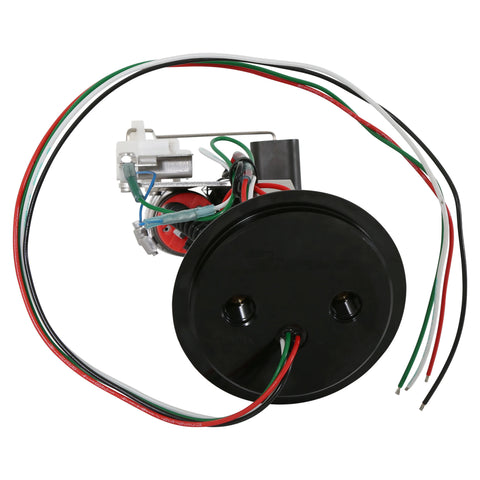

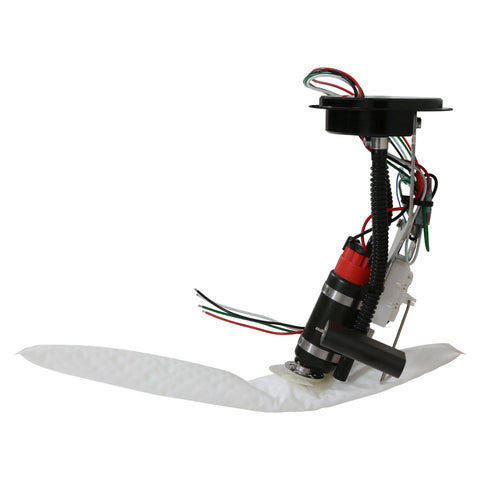

Sniper Efi Fuel Pump Module - 340 Lph
340 LPH. Straight into the stock tank. There is a version of the fuel system upgrade that involves a fabricated sump; a surge tank and a weekend on your back. This is the other version. The module drops into any 1990-1997 Ford truck short bed EFI tank; the lock ring goes back on; the job is done. The pump flows 340 liters per hour and supports up to 700 EFI horsepower or 900 carbureted - rated at 60 PSI and 13.5 volts on a 10.4 amp draw. The 6AN o-ring outlet and return ports turn the plumbing into two fittings instead of an afternoon of adapters. The flange is 6061-T6 aluminum in bright dip black anodize. That is the part you appreciate five years in; because undercar moisture is what finishes off the flanges that were left bare. Assembled module; new filter sock; flange o-ring and lock ring are in the box. Add a bypass regulator and go.
Install Level: Intermediate - fuel tank module installation and fuel system plumbing
Direct fit for 1990-1997 Ford Truck Short Bed EFI fuel tanks.
A bypass design regulator is required for both EFI and carbureted use - Holley recommends 12-879 or 12-880; sold separately.
Features:
- The 6061-T6 Aluminum fuel pump module is a high-pressure unit that flows 340 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 700 EFI horsepower.
- Includes a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application
- 6AN o-ring outlet and return ports for easy plumbing connections

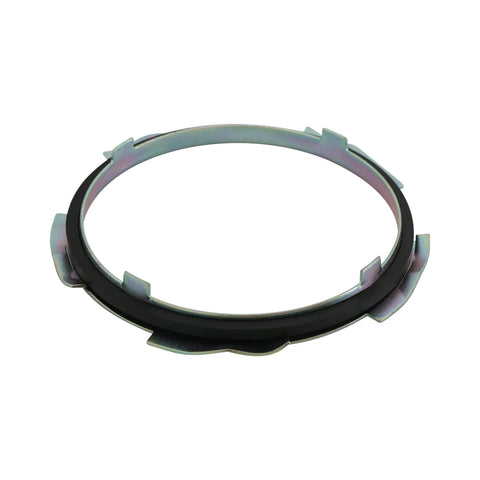

- Filter sock, flange O-ring, and fuel tank lock ring included to complete your installation
- Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your need
- Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
- The flange is bright dip black anodized for corrosion protection from undercar moisture.

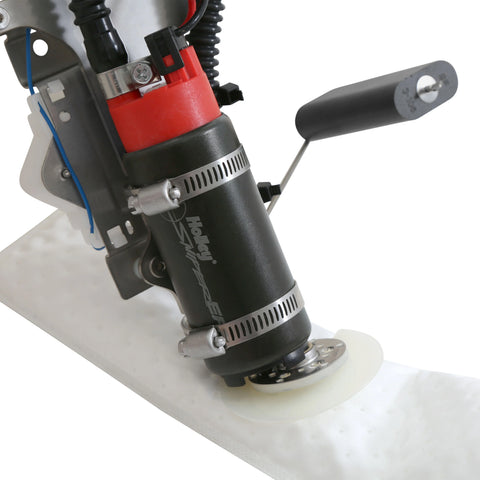

Sniper fuel pump - 340 liters per hour
Supports up to 700 EFI horsepower or 900 carbureted horsepower
Rating: 60 PSI at 13.5 volts; 10.4 amp draw
Module flange: 6061-T6 aluminum; bright dip black anodized
6AN o-ring outlet port
6AN o-ring return port
Pre-calibrated fuel level sending unit for the factory gauge

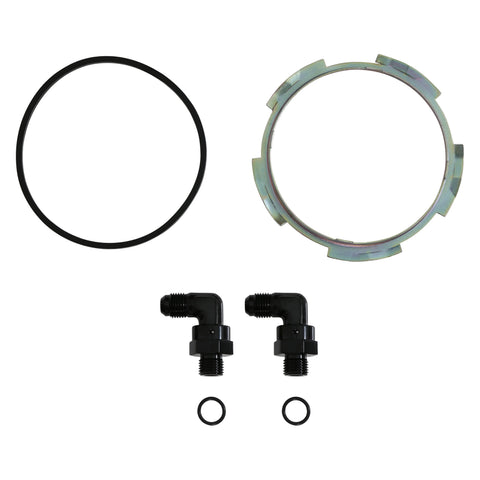

Includes assembled module; filter sock; flange o-ring and fuel tank lock ring
Direct fit: 1990-1997 Ford Truck Short Bed EFI fuel tank
Suits both EFI and carbureted fuel systems
Requires a bypass design regulator - Holley recommends 12-879 or 12-880
EFI and carbureted fuel systems up to 700 EFI or 900 carbureted horsepower.
Requires a bypass design fuel pressure regulator - Holley recommends 12-879 or 12-880.
