SoundShield Truck Kit | 1953-56 Ford Trucks
Close the door. Hear the latch; not the panel. A bare 1953-56 cab is a drum. Sheet metal that thin picks up driveline whine; tire roar and every heat cycle off the transmission tunnel; then reflects all of it back at your ears. Add a Coyote and a modern axle and you have made the truck faster without making it liveable. This kit is the whole cab in one box; sized for a 53-56. One Massive roll at 48 square ft; two Original rolls at 11 square ft each; a Slim roll for the places where depth matters; and a WrapIt tube for the brackets and panels that buzz against each other. The sheet is a triple layer: waterproof closed-cell acoustic foam on top; a heat rejecting foil center; flexible butyl rubber and a high-tac pressure sensitive adhesive underneath. Peel; stick; roll it down. No fasteners; no spray; no cure time. Seventy square ft of damping sheet plus the tape. That is a floor; a firewall; both doors and a back wall without a second order halfway through the job. Buy it once and stop guessing how much you need.
Install Level: Beginner - peel and stick; cut to fit with a sharp blade and press down with a roller
Published coverage: Massive 48 square ft; Original 11 square ft per roll (22 square ft for the two). Slim roll area is not published in the listing text.
Peel and stick pressure sensitive adhesive. No fasteners or spray adhesive required.
Contour speaker pads and strips are not in this kit; they are a separate listing.
The SoundShield Truck Kit is a total truck interior soundproofing solution. It contains a Massive roll, Slim roll, 2 Classic rolls, and Wrap-It single tube, crafted to 1953-56 Ford Trucks. Made from the best quality materials, the SoundShield Truck Kit is optimized for sound deadening performance. It's the ideal one-stop selection for those in search of sound deadening their truck interiors but uncertain of how much or which product to use.
Details:
- Massive roll x1
- Slim roll x1
- Original roll x 2
- Wrap It Single Tube (tube comes with 2 rolls)
Massive Roll Specs
Slim Roll Specs
Original Roll Specs
Wrap It Specs

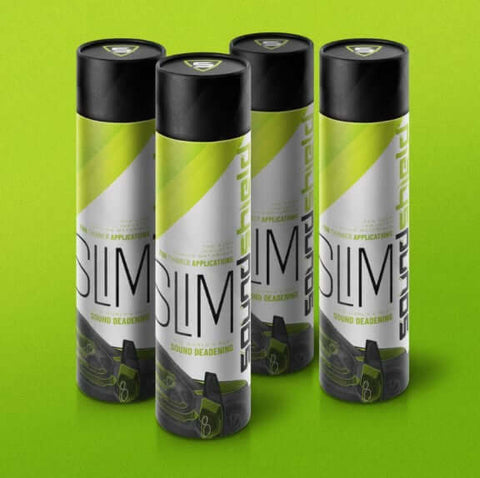

Slim - has a thinner profile for applications where saving surface depth is imperative.
Massive - 48 square ft 4.5 mm thick with a triple–layer damping sheet.
Original - 11 square ft 4.5 mm thick with a triple–layer damping sheet.
Application: 1953-56 Ford trucks
Contents: Massive roll x1; Slim roll x1; Original roll x2; WrapIt single tube (2 rolls per tube)
Massive roll: 48 square ft; 4.5 mm thick; triple-layer damping sheet
Original roll: 11 square ft; 4.5 mm thick; triple-layer damping sheet; two rolls in this kit
Slim roll: thinner profile for depth-critical areas; area and thickness not published in the listing text
WrapIt: closed-cell waterproof acoustic foam peel and stick tape; length and width not published in the listing text
Total published sheet coverage: 70 square ft plus one Slim roll
Construction: waterproof closed-cell acoustic foam top layer; heat rejecting foil center; flexible butyl rubber; pressure sensitive high-tac adhesive underlayment
Adhesive: pressure sensitive high-tac peel and stick
Weather resistant
Listed price 830.00 USD
Variant count 4 against no published option values
No temperature rating; roll width or weight per square ft is published on this listing
Universal application by nature - the sheet is cut to fit; nothing bolts on - but the roll count in this kit is set for the 53-56.
