Pressure+ Switch Air Suspension Management Upgrade

$247.95

AccuAir Pressure+ management upgrade for classic truck air ride builds, reading air spring pressure instead of height with no arms or linkage, set up from the ePlus app.

  • Nothing hanging under the truck - no sensor arms or linkage in the path of rocks and road debris.
  • Easier install than height sensors - published as the simpler of the two upgrades.
  • Several hundred dollars cheaper - AccuAir states the price gap against the Height+ kit plainly.
  • Same straight to target feel - it drives to a pressure the way Height+ drives to a height.
  • Reads each corner - individual spring pressure on the app rather than a single system figure.
  • Works with what you have - e+ ECU; TouchPad+; VU4 or ENDO-VT.

Install Level: Moderate

Requires the AccuAir e+ ECU.
Does not adjust for changes in load. Height+ is more accurate for a set ride height.

SKU: AA-3907

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
Pressure+ Switch Air Suspension Management Upgrade
$247.95

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 4

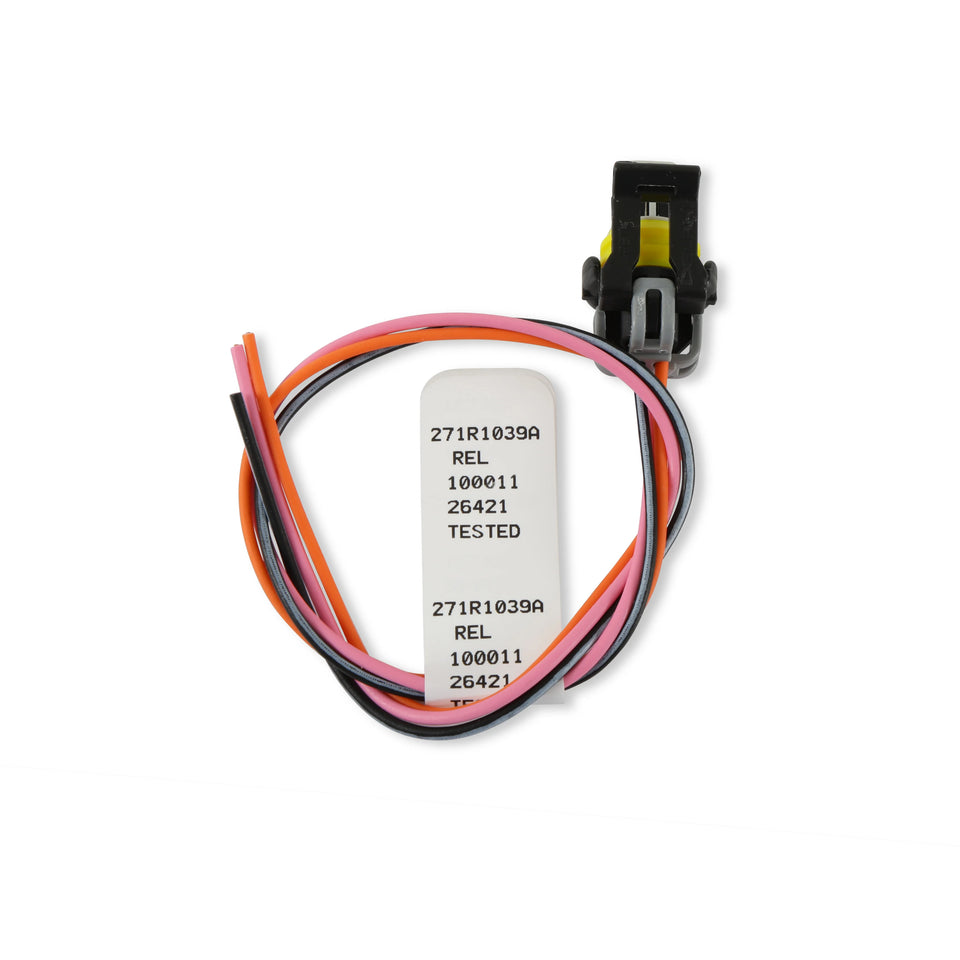

  • Holley EFI Pressure Sensor $155.95 Details for Holley EFI Pressure Sensor

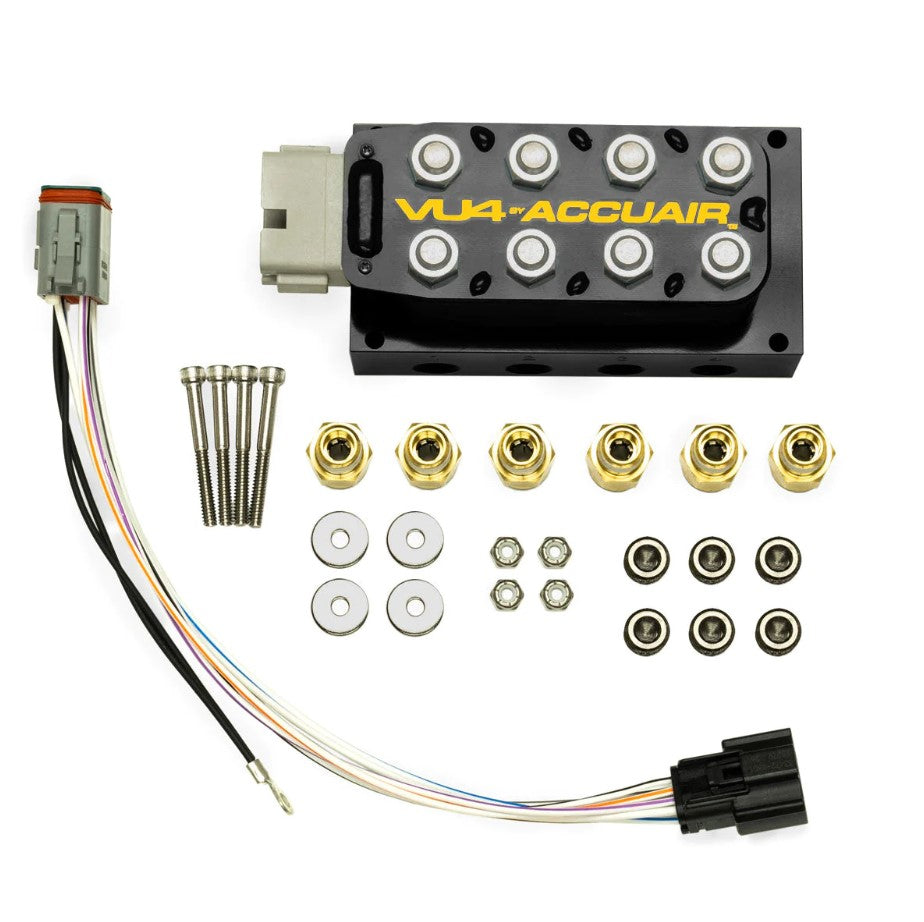

  • VU4 4 - Corner Manifold (NPT) $549.95 Details for VU4 4 - Corner Manifold (NPT)
  • 3/8" DOT/PTC Tee -to- 1/8 NPT Female (Pressure Sensor Tee) $17.95 Details for 3/8" DOT/PTC Tee -to- 1/8 NPT Female (Pressure Sensor Tee)

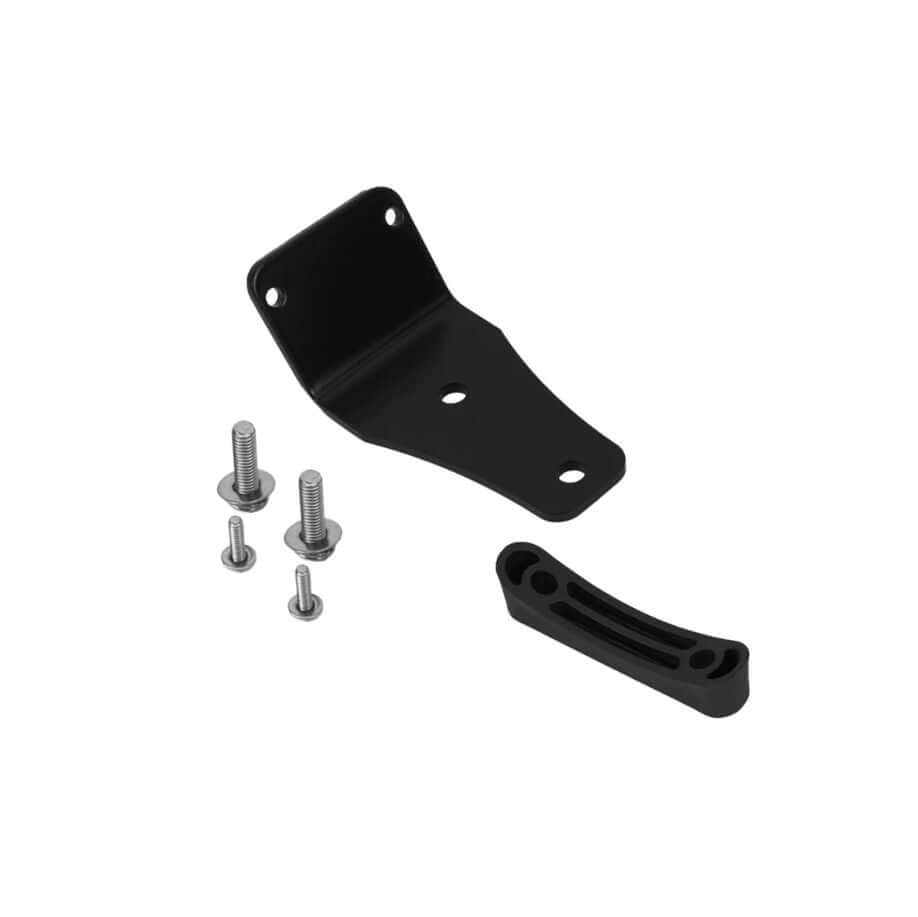

  • Fiction Fabrication e+ ECU ENDO Air Suspension Tank Bracket $59.95 Details for Fiction Fabrication e+ ECU ENDO Air Suspension Tank Bracket

Overview
Specifications
Tech Resources
Compatibility

You asked and we delivered! For those who are wanting to inflate and deflate their airbags to certain pressure settings, the AccuAir Pressure+ upgrade is going to be the solution. Similar to our Height+ sensors, the Pressure+ upgrade allows for pressure-based control within your ePlus app. This system uses the e+ ECU and can be enabled in the advanced settings in the ePlus app.

Details

  • Shows Individual Spring Pressure
  • Requires A Pressure-Based Calibration To Be Performed From The App
  • Used In Conjunction With A Pressure Sensor Kit
  • Uses The Same Touchpad+
  • Can Easily Be Used With VU4 Using ¼ NPT to ⅛ NPT Reducers
  • Can Easily Be Used With ENDO-VT or Any Other Manifold By Placing Pressure Sensor Tee Inline Between Valve And Springs

Pressure+ vs Height+

To give you a better idea of the differences between the Pressure+ and Height+ systems, let’s look at some pros and cons when comparing.

Pros

  • The Pressure+ Kit Is Easier To Install Than Height Sensors
  • The Pressure+ Kit Has Less Moving Components That Can Be Broken
  • The Pressure+ Kit Is Several Hundred Dollars Less Expensive
  • Uses Same Straight-To-Target Adjustment Style As Height-Based Kit

Cons

  • The Height+ Kit Has A More Accurate Method Of Getting To The Desired Height
  • The Pressure+ Kit Will Not Adjust For Changes In Load



AccuAir part number AA-3907
Type: Pressure+ air suspension management upgrade
Control method: pressure based targets in the ePlus app
Display: individual spring pressure
Required controller: e+ ECU
Enabled via: advanced settings in the ePlus app
Calibration: pressure based calibration performed from the app
Required companion: pressure sensor kit
Control interface: same TouchPad+ as the rest of the range
VU4 compatibility: with 1/4 NPT to 1/8 NPT reducers
ENDO-VT and other manifolds: pressure sensor tee placed inline between valve and springs
Adjustment style: straight to target - same as the height based kit
Limitation: does not adjust for changes in load
Listed price 247.95 USD

Questions? Talk to the FFG Team

For fitment questions or build-specific guidance, the FFG team has you covered.

Email: info@fatfender.com

Call: (480) 621-6072

Works with AccuAir systems running the e+ ECU and the ePlus app.
VU4 manifolds need 1/4 NPT to 1/8 NPT reducers. ENDO-VT and other manifolds need a pressure sensor tee inline between valve and springs.
Requires a pressure sensor kit.
No vehicle fitment applies - this is a management upgrade.
