Dual Phantom Aeromotive 340 Fuel Pumps

$1,062.46

Dual Phantom Aeromotive 340 in-tank fuel pump assembly for high-horsepower classic truck builds. Two 340 lph pumps, a baffled basket and a cut-to-height hanger.

  • Baffle basket with foam - keeps both inlets covered on a low tank and a long corner.
  • Four ORB-06 ports - two supply, one return and one vent.
  • EFI or carbureted - published ratings up to 1400 hp EFI boosted and 2000 hp carbureted.

Install Level: Advanced

In-tank use only.
Fuel level sending unit is not included.

SKU: 41014

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
Dual Phantom Aeromotive 340 Fuel Pumps
$1,062.46

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 2

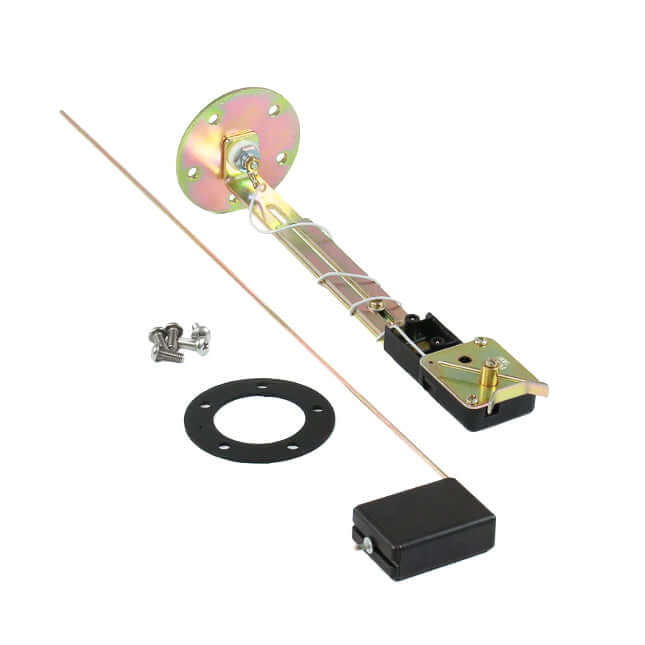

  • Fuel Sending Unit From $48.00 Details for Fuel Sending Unit

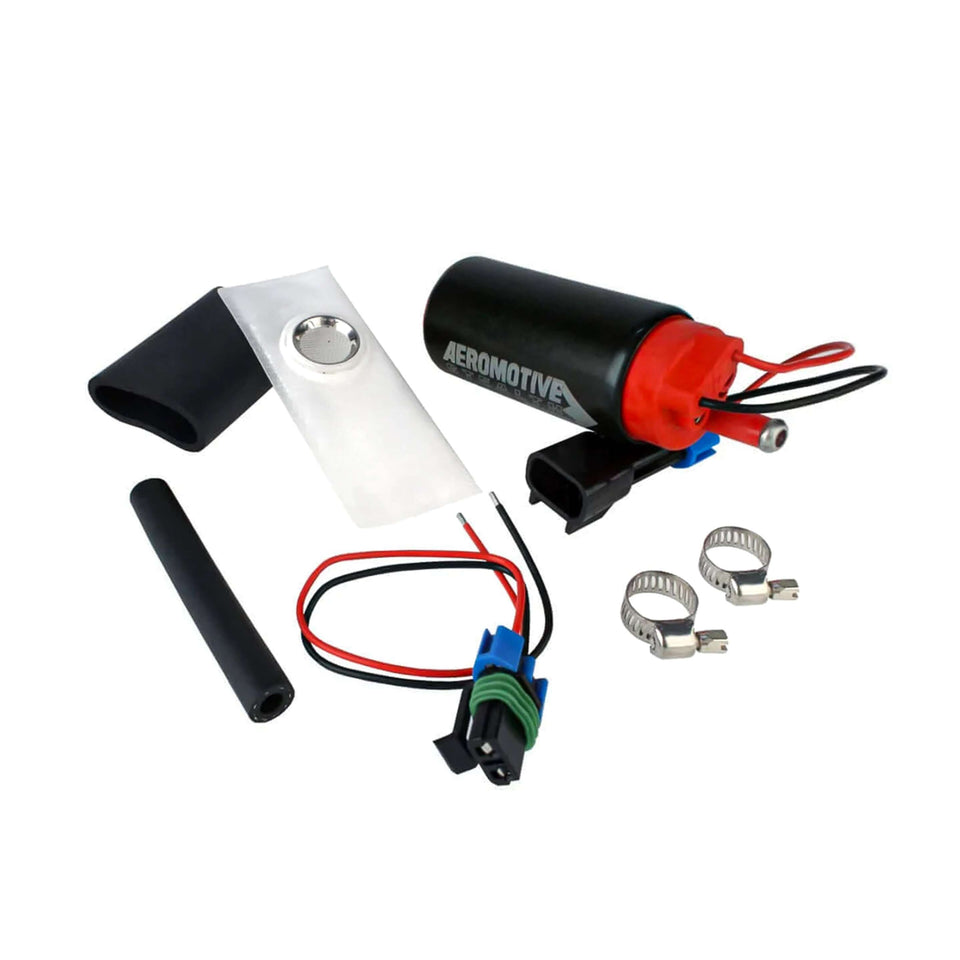

  • Aeromotive 11540 Pump, 340 LPH Only $144.95 Details for Aeromotive 11540 Pump, 340 LPH Only

Overview
Specifications
Tech Resources
Compatibility

The Aeromotive 18309 Dual Phantom 340 LPH In-tank Pump Assembly is a great fit for your forced induction or naturally aspirated applications. This Dual Phantom pump Supports up to 1700 HP carbureted forced induction or 2000 HP carbureted, naturally aspirated. This black adonized top hat pump has superior flow throughout its wide pressure range and a perfect upgrade to your fuel tanks. See details below for more information.

Details

  • (2) 340 lph Stealth Fuel Pumps
  • Supports up to
    – 1400 HP EFI – Forced Induction
    – 1700 HP EFI – Naturally Aspirated
    – 1700 HP Carbureted – Forced Induction
    – 2000 HP Carbureted – Naturally Aspirated
  • Black anodized top hat
  • (4) ORB-06 Ports – 2x Supply, (1) Return, (1) Vent
  • Larger Capacity fuel resistant baffle / basket (Includes: Foam and Bladder)
  • (2) Universal high flow pre-pump filters
  • Modular design can be cut to height to fit almost any fuel tank
  • EFI or Carbureted
  • Turbine pump mechanisms increase durability
  • In-tank use only



Store part number 41014; listed as Aeromotive Dual Phantom 18309
Vendor: Boyd Welding
Pumps: (2) 340 lph Stealth fuel pumps
Top hat: black anodized
Ports: (4) ORB-06 - 2x supply; (1) return; (1) vent
Basket: larger capacity fuel resistant baffle basket including foam and bladder
Filters: (2) universal high flow pre pump filters
Support: 1400 HP EFI forced induction
Support: 1700 HP EFI naturally aspirated
Support: 1700 HP carbureted forced induction
Support: 2000 HP carbureted naturally aspirated
Design: modular; can be cut to height to fit almost any fuel tank
Fuel type: EFI or carbureted
Pump mechanism: turbine
Use: in tank only
Listed price 1062.46 USD
Variant count: 2

Questions? Talk to the FFG Team

For fitment questions or build-specific guidance, the FFG team has you covered.

Email: info@fatfender.com

Call: (480) 621-6072

Universal in tank pump assembly; the fitment condition is your tank depth and top hat opening; not the vehicle.
Modular design cuts to height to fit almost any fuel tank.
Offered as the upgrade pump option on the Fat Fender Garage 1953-60 and 1965-72 EFI fuel tanks.
In tank use only. No vehicle year or model application is published.
