Vapor Trapper

Does your vehicle constantly smell like raw gas? Do you hate keeping it in the garage because it makes the whole garage and house smell like gas? The Vapor Trapper is a high-quality billet aluminum charcoal vapor canister specifically designed to reduce/eliminate fuel odors from vehicles in which their fuel tanks vent to atmosphere. It is the only aftermarket, universally designed, charcoal vapor canister on the market. The Vapor Trapper was made for all cars, trucks, hotrods, boats and everything in between! The Vapor Trapper is easy to install and comes with a lifetime warranty. They are manufactured using 6061 billet aluminum and built to last a lifetime. They are rechargeable meaning the charcoal contents can be replaced when they eventually become saturated. This will be the last charcoal canister you will ever need for your vehicle!

With the new trend of adding modern fuel injection to your vehicle, manufacturers of these EFI systems, fuel cells and custom builders have not been able to answer this huge problem of the raw gas smell. Shop48 set out to provide a solution to this growing problem by developing the Vapor Trapper.  Now you can eliminate the raw gas smell with this great new product!

Nothing else on the market is as high-quality and effective as the Vapor Trapper. Installation is simple and straightforward since it is installed in line with your fuel tank vent hose using practically any inlet/outlet configuration. The Vapor Trapper is proudly manufactured and assembled in the USA, right here in our home state of Arizona!

Patent Pending



Note: All SHOP48 parts come with a lifetime warranty. If you encounter any problems with your Vapor Trappers, please contact us so we can send you a new one or work with you to find a solution that leaves you 100% satisfied.

Disclaimer: This product is NOT intended to be emissions compliant or to be used to replace factory emissions equipment on any vehicle requiring them. All responsibility for safe installation and maintenance of this product is the purchaser's responsibility.

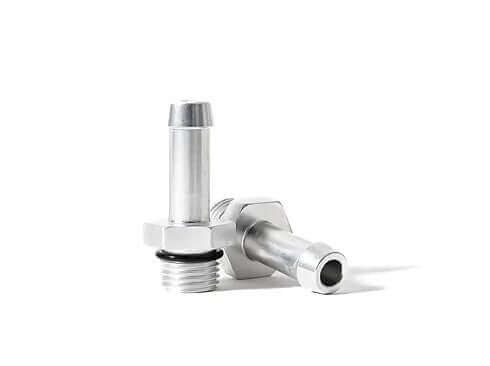

Installation: The Vapor Trapper can be easily mounted using two 2-1/2” clamps put in line with your fuel tank vent line. Use #6 AN O-ring Boss fitting (barb fittings with a rubber fuel hose or a threaded AN fitting for a more custom installation). Make sure to install the Vapor Trapper, or at least the inlet line, far above the fuel tank to avoid liquid fuel getting into the filter. Fuel getting into the Charcoal media drastically reduces the performance of this product.

Shop 48 part number VT6BLK (6 inch; Black Anodized)
Material: 6061 billet aluminum
Sizes: 6 inch or 8 inch
Finishes: Black Anodized or Silver
Media: activated charcoal; rechargeable and replaceable
Ports: #6 AN O-ring boss
Mounting: two 2-1/2 inch clamps; installed in line with the fuel tank vent hose
Installed above the fuel tank; inlet line above tank level at minimum
Manufactured and assembled in the USA in Arizona
Patent pending
Lifetime warranty
Listed price 319.99 USD for the 6 inch Black Anodized
Variant count 5 against four published option combinations
No weight; port thread depth or media capacity is published on this listing

Universal. Published for any car; truck; hot rod or boat whose fuel tank vents to atmosphere.
Tagged across 1948-52 through 1980-97 Ford trucks; 1947-54 through 1973-87 Chevy trucks and 1966-77 and 1992-97 Broncos. Fitment is by plumbing rather than by vehicle.
Requires #6 AN O-ring boss fittings and two 2-1/2 inch clamps; both sold separately.
Must be mounted above the fuel tank - or at minimum with the inlet line above tank level - so liquid fuel cannot reach the charcoal media.
Not emissions compliant and not a substitute for factory emissions equipment.
