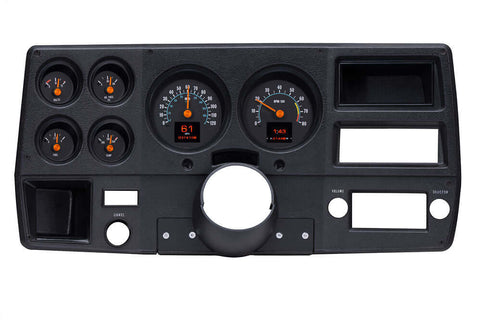

RTX Instrument Gauge System | Chevy Pickup (1973-87)

Paying tribute to all three gauge designs available over the years (1973-75, 1976-78 and 1979-87), the RTX series maintains the beloved Chevy and GMC square-body look while bringing in late-model elements. A bolt-in affair with your stock or aftermarket front bezel (not supplied), the twin TFT message centers give the look of a vintage tumbler odometer, but can be expanded with auxiliary readings to keep you informed. Retains stock gear-indicator and the factory turn signal locations are now LED-lit.

The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.

Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!

Note: Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Dakota Digital part number RTX-73C-PU-X
Vendor: Dakota Digital
Series: RTX
Cluster: twin TFT message centers styled as vintage tumbler odometers; LED-lit factory turn signal locations; stock gear indicator retained
CNC machined housings; electronics designed and built in house
LED backlighting with selectable color schemes
High-definition TFT message center; fully configurable readouts
OEM design elements in layout; face styling and indicators
Central control box for simplified installation and setup
Late-model drivetrain sensor compatibility
Included: mounting hardware
Listed price 1765.00 USD
Variant count: 24
No published cluster depth; amperage draw or harness length on this listing

Fits the 1973-1987 Chevrolet and GMC C/K Pickup as published; part number RTX-73C-PU-X.
Cluster layout: twin TFT message centers styled as vintage tumbler odometers; LED-lit factory turn signal locations; stock gear indicator retained.
Bezel not included. System uses an OEM or reproduction style bezel.
Tagged into the Chevy 1973-87 generation bucket in the store taxonomy.
