$12,650.00

Ford Performance 5.0L Gen 4X Coyote crate engine for classic truck swaps: 460 HP, 420 lb-ft, with a single 80mm throttle body that frees up room and a 10R80 flexplate.

  • Single throttle body; easier packaging - one 80 mm unit instead of two clears the space a swap always fights for first.
  • 460 HP on pump premium - 12:1 compression with direct and port injection; power without a race fuel habit.
  • Boss 302 rods; forged crank - the rotating assembly is already the good one.
  • 10R80 flexplate included - an automatic build starts one part number ahead.
  • 445 lbs bare - lighter over the front axle than the iron it is replacing in most classic trucks.
  • Modular mount pattern - existing Coyote swap mounts and bellhousings apply.

Install Level: Advanced

Control pack not included. Use M-6017-M50HM (manual) or M-6017-M50HA (automatic).
Manual flywheel and alternator kit are sold separately.
Exhaust manifold supplied for the right side only.

SKU: M-6007-M50H

⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
5.0L Gen 4X Mustang Crate Engine
$12,650.00

Finish the Build Right

Parts our crew pairs with this kit so your swap goes together right the first time.

1–2 of 4

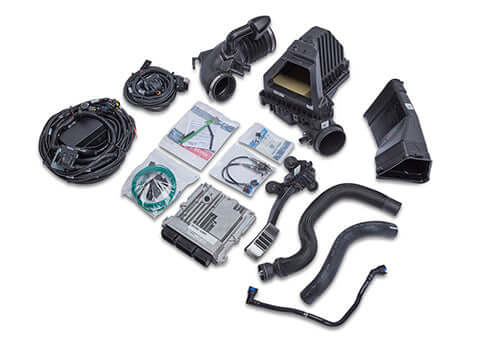

  • Gen 4X Coyote Control Pack w/ 10R80 Auto Trans $2,730.00 Details for Gen 4X Coyote Control Pack w/ 10R80 Auto Trans

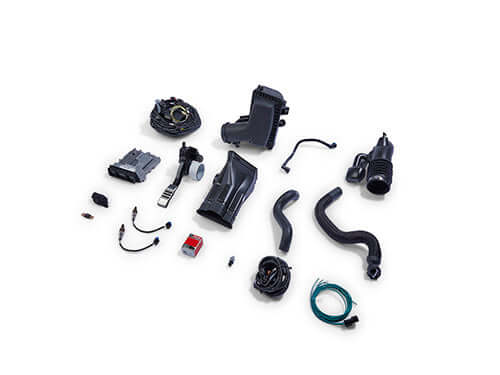

  • Gen 4X Coyote Control Pack w/ Manual Trans $2,730.00 Details for Gen 4X Coyote Control Pack w/ Manual Trans
  • FFG Coyote Swap Motor Mount Kit | 1978-79 Bronco 4WD $985.00 Details for FFG Coyote Swap Motor Mount Kit | 1978-79 Bronco 4WD
  • Mustang Headers | 1964.5-70 (For Detroit Speed Aluma-Frame) From $2,274.99 Details for Mustang Headers | 1964.5-70 (For Detroit Speed Aluma-Frame)

Overview
Specifications
Tech Resources
Compatibility
  • Part Number: M-6007-M50H

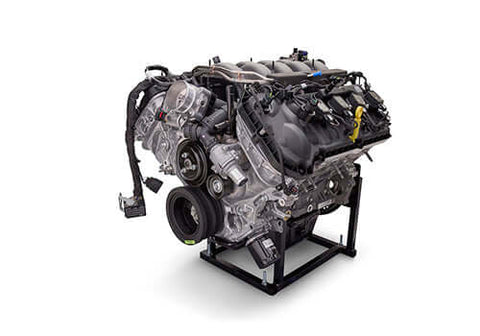

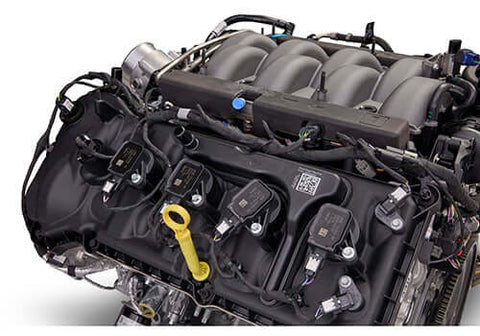

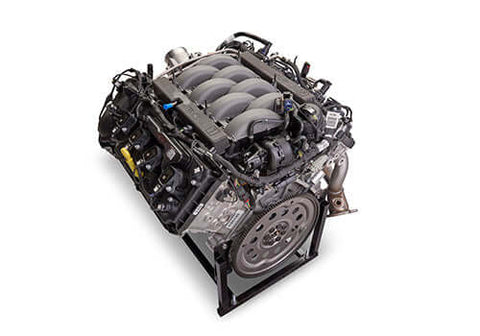

The Ford Performance all-aluminum 5.0L Coyote Gen 4X crate engine is a modern 5.0L 32-valve DOHC V-8 that utilizes advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow aluminum cylinder heads, and 12:1 compression to deliver 460 horsepower and 420 lb.-ft. of torque (with premium fuel). The aluminum cylinder block features plasma transferred arc spray in liners, cross-bolted main bearing caps, and thick main bearing bulkheads for strength. The Gen 4X 5.0L Coyote features a single 80mm throttle body for easier packaging in various applications.


  • 460 hp and 420 lb.-ft. of torque
  • 12:1 compression ratio
  • Hypereutectic aluminum pistons
  • Sintered steel connecting rods as used on the Boss 302 Mustang
  • Forged steel crankshaft
  • Single 80 mm "drive-by-wire" throttle body
  • 9.5 quart steel oil pan
  • Composite lightweight intake manifold

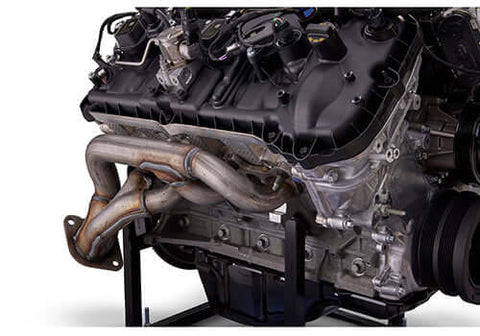

  • Mustang GT 409 stainless steel exhaust manifold RIGHT SIDE ONLY
  • Engine mount bosses and bell housing mount pattern common to 5.0L modular engines
  • For control packs see M-6017-M50HM and M-6017-M50HA
  • For alternator kit see M-8600-M50BALT, M-8600-M50ALTC or M-8600-M50ALTA
  • 10R80 flexplate included
  • For manual transmission flywheel please see M-6375-M50
  • Engine weight: 445 lbs. without front accessory drive components
***Note: driver side exhaust flange utilizes 5.2L pattern***

Ford Performance part number M-6007-M50H
5.0L 32-valve DOHC V8; all aluminum; Coyote Gen 4X
460 HP and 420 lb-ft of torque on premium fuel
12:1 compression ratio
Direct and port fuel injection
Twin independent variable camshaft timing (Ti-VCT)
Hypereutectic aluminum pistons
Sintered steel connecting rods as used on the Boss 302 Mustang
Forged steel crankshaft
Aluminum cylinder block with plasma transferred arc spray liners; cross-bolted main bearing caps; thick main bearing bulkheads
High-flow aluminum cylinder heads
Single 80 mm drive-by-wire throttle body
Composite lightweight intake manifold
9.5 quart steel oil pan
Mustang GT 409 stainless steel exhaust manifold; right side only
Driver side exhaust flange uses the 5.2L pattern
10R80 flexplate included
Engine mount bosses and bellhousing pattern common to 5.0L modular engines
Engine weight 445 lbs without front accessory drive components
Listed price 12650.00 USD

Questions? Talk to the FFG Team

For fitment questions or build-specific guidance, the FFG team has you covered.

Email: info@fatfender.com

Call: (480) 621-6072

No vehicle application is published on this listing. This is a crate engine sold for swap use.
Engine mount bosses and bellhousing mount pattern are common to 5.0L modular engines; Coyote swap mounts and bellhousings for that family apply.
The single 80 mm throttle body is the reason to choose this engine over the twin-throttle Gen 4; it packages more easily in a narrow engine bay.
10R80 flexplate is included; a manual build needs flywheel M-6375-M50.
Control pack M-6017-M50HM or M-6017-M50HA is required and not included.
Exhaust manifold is supplied for the right side only and the driver side flange uses the 5.2L pattern.
