VHX Instrument Universal 5 and 6 Gauge Round, Analog
$865.00
VHX universal 5 or 6 gauge round analog instrument system for custom classic truck dashes. Stepper motor gauges with an LCD message center, senders and harnesses.
Install Level: Moderate
Universal fit; mounting it requires a custom dash panel.
Gear position display requires the GSS-3000 sensor, sold separately.
If transmission clearance is tight, the 130011 speed sensor relocator is sold separately.
SKU: VHX-1050-K-B
Finish the Build Right
Parts our crew pairs with this kit so your swap goes together right the first time.
-

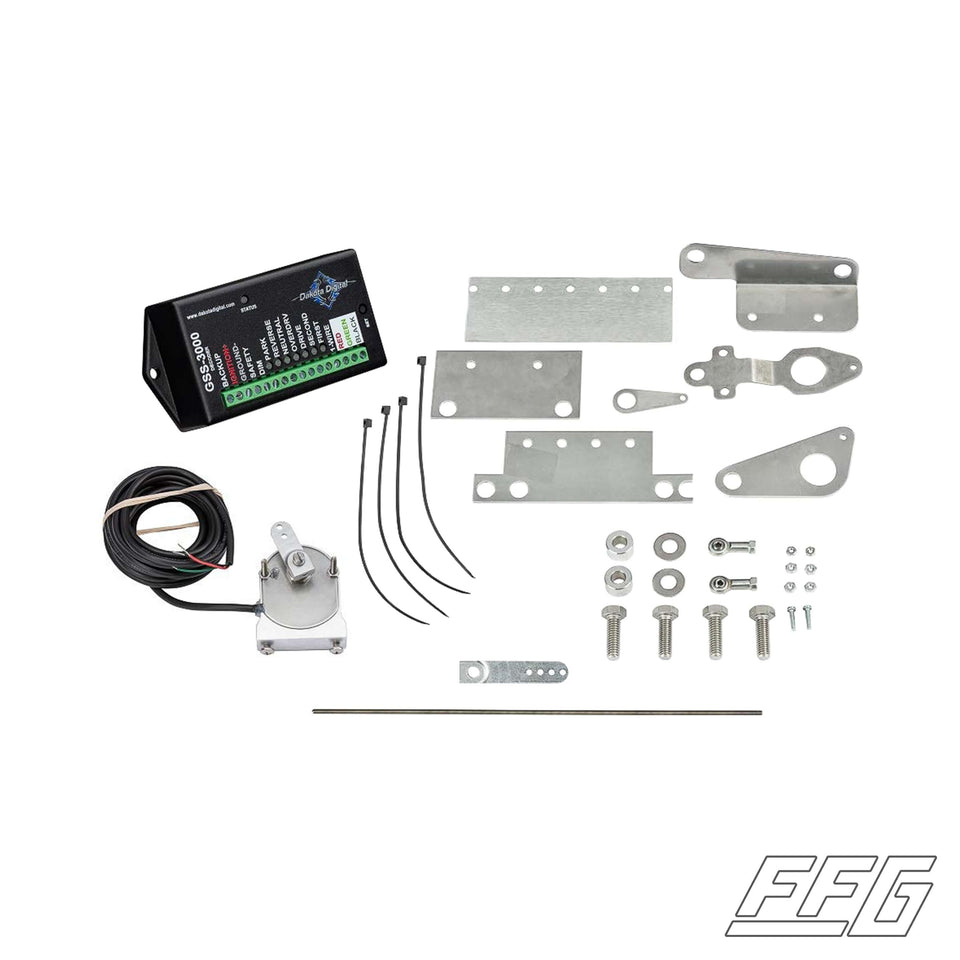

GSS-3000
$150.00
Details for GSS-3000
-
FFG 1973-1979 Ford Wire Harness
$1,695.00
Details for FFG 1973-1979 Ford Wire Harness
Dakota Digital universal round VHX Series analog gauge kits introduce a new look in a traditional layout. The circular gauge format has been a design staple for generations, allowing flexibility in nearly any type of vehicle--and this distinctive line offers vital information in a variety of configurations … from one single gauge, to a cluster of six! VHX dials provide accurate feedback on at least 20 automotive levels, speeds, and functions; and bringing the vintage dashboard displays into the 21st century are bright LCD message centers, backlit faces, and fully lit needles.
These gauge kits are equally impressive behind the scenes, with solid-state sensors, precision stepper motors, and customizable data readouts. Choose the colors you prefer on the face and digits; everything will be encased in a chromed billet aluminum housing with polished bezel. Dakota Digital gauges have revolutionized the industry--just think what they'll do for your driving experience!
| VHX-1050: 5 gauge round kit. | VHX-1060: 6 gauge round kit. |
|
|
Dimensions:
Speedometer and Tachometer: Cutout 3-3/8" (3.55" OD)
Oil Pressure, Water Temperature, Fuel Level, Volts: Cutout 2-1/16" (2.225" OD)
| Analog Gauges |
|
|
| Speedometer |
| ·0 -160 MPH (optional metric version 0- 255 kmh) |
|
|
| Tachometer |
| ·0- 8,000 RPM |
|
|
| Oil Pressure |
| ·0- 80 psi |
|
|
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
|
|
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
|
|
| Voltmeter |
| ·9- 17 VDC |
|
|
| Lighting |
| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
|
| Digital Message Centers |
|
|
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
|
|
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
|
|
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
|
|
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
|
| Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
**Not all OEM indicator lamp functions will be replaced.
|
| Included Sensors |
Water Temperature·1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure·1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)
Bushings·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
Pushbutton·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Vendor: Dakota Digital
Speedometer and tachometer: 3-3/8 inch cutout; 3.55 inch outside diameter
Oil pressure; water temperature; fuel level and volts: 2-1/16 inch cutout; 2.225 inch outside diameter
Speedometer: 0-160 MPH analog; optional metric 0-255 kmh; digital readout 0-255 MPH or kmh
Tachometer: 0-8;000 RPM analog; digital readout 0-9;900 RPM
Oil pressure: 0-80 psi analog; digital 0-100 psi in 1 psi steps
Water temperature: 100-260 F analog; optional metric 40-120 C; digital 100-300 F or 40-150 C in 1 degree steps
Fuel level: E; 1/4; 1/2; 3/4; F analog; digital 0-99 percent
Voltmeter: 9-17 VDC
Digital message center: odometer one time settable to one million miles; dual A/B trip meter 0-9;999.9; 12 hour clock
Performance meters: 0-60 MPH timer; quarter mile time; quarter mile trap speed; high speed recall; high RPM recall
Built in indicators: turn signals; high beam; check engine; parking brake; cruise control; gear position; 4x4; wait to start
Lighting: LED backlit faces; fully lit needles; auto contrasting LCD display
Housing: chromed billet aluminum with polished bezel
Included senders: 1/8 inch NPT ground isolated water temperature sender and 1/8 inch NPT solid state oil pressure sender; each with a 10 ft harness
Included speed sensor: cable driven generator replacing GM style speedometer cables; 10 ft harness
Included bushings: 1/8 inch to 1/4 inch; 3/8 inch; 1/2 inch NPT; 12mm and 16mm x 1.5
Listed price 865.00 USD
Variant count: 17
Questions? Talk to the FFG Team
For fitment questions or build-specific guidance, the FFG team has you covered.
Email: info@fatfender.com
Call: (480) 621-6072
Speedometer and tachometer need 3-3/8 inch holes. The four small gauges need 2-1/16 inch holes.
Speed comes from the included cable driven sensor in place of a GM style speedometer cable. Tremec and Ford style adaptors are available on request.
No vehicle year application is published for this listing.
