GSS-3000

The brain got smaller. The install got easier. A gear position sender reads the detent your shift lever is actually sitting in and tells the rest of the truck about it. Without one; a swapped automatic behind a modern dash leaves you guessing at the lever and wiring the reverse lights by hand. The GSS-3000 is the current generation. Dakota Digital shrank the decoder and moved the terminals inboard; so it tucks in where the old GSS-1000 and GSS-2000 would not. It will talk to a VFD; VHX; HDX or RTX cluster or to a DGS standalone indicator; or it will run entirely on its own driving reverse lights to 15 amps and a neutral safety relay that keeps the starter honest. Calibration is done at the lever. Two to four forward detents plus Park; Reverse and Neutral; taught in one pass. Mounting hardware for TH350; TH400; 700R4; 4L60/70/80; Ford C-4 and C-6 is in the box; and everything else gets the universal bracket.

  • Smaller decoder; easier fit - the current generation shrank the brain and moved the terminals inboard so it tucks in where the old units would not.
  • Runs standalone or networked - feed a VFD; VHX; HDX or RTX cluster; a DGS indicator; or nothing at all.
  • Reverse lights built in - an output rated to 15 amps drives the lamps directly.
  • Neutral safety handled - the supplied 30 amp relay keeps the starter from cranking in gear.
  • Hardware for the common boxes - TH350; TH400; 700R4; 4L60/70/80; Ford C-4 and C-6 are covered; everything else gets the universal bracket.

Install Level: Intermediate - transmission mounted sender; wiring and shift detent calibration

Dakota Digital gear position indicators and gauges are sold separately.
Supersedes the GSS-1000 and GSS-2000.
Mounting hardware covers GM TH350; TH400; 700R4; 4L60/70/80 and Ford C-4 and C-6. Other transmissions use the universal bracket.

Dakota Digital
SKU: GSS-3000 ISBN: 41418338566334
$150.00
Expert Tech Support
ShopTested Parts
Worldwide Shipping
⚠️
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead. Learn more.
GSS-3000
$150.00
Overview
Specifications
Tech Resources
Compatibility

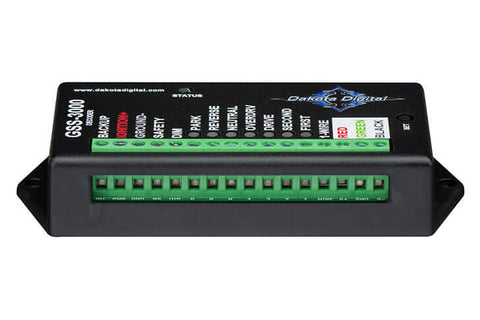

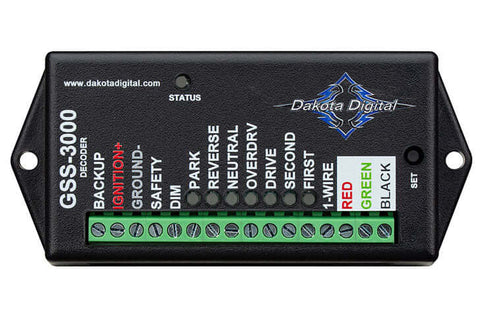

The GSS-3000 is a new generation of gear-shift (detent) position system from Dakota Digital. We’ve minimized the decoder (the brain of the system), and the new, smaller size with inboard terminals allows for easier installation. Able to be used with a Dakota Digital instrument system or on its own, this versatile unit can relay transmission gear position to a VFD, VHX, HDX or RTX instrument system, as well as the DGS-series of standalone indicators.

Note: GSS-3000 supersedes the GSS-1000 and GSS-2000

Details

  • Built-in outputs for reverse lights (up to 15 amps) and neutral safety switch (with supplied 30amp relay).
  • Easy setup and calibration.
  • User-calibrated for 2-4 forward shifter detent locations, plus Park, Reverse and Neutral.

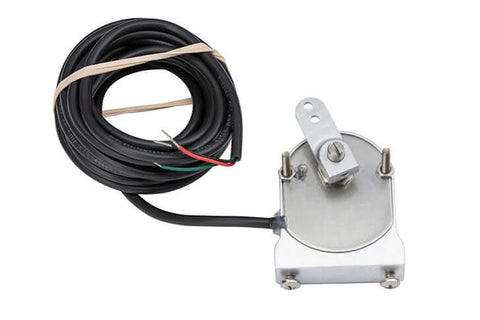

  • Stainless steel and aluminum mounting hardware included for a variety of transmissions.
  • Mounting hardware included to fit automatic transmissions including GM TH350, TH400, 700R4, 4L60/70/80, as well as Ford C-4 and C-6.
  • Other transmissions will utilize the included universal mounting bracket.


Dakota Digital gear position indicators sold separately.

Dakota Digital part number GSS-3000
Vendor: Dakota Digital
Function: gear shift detent position system
Reverse light output: up to 15 amps
Neutral safety switch output: via supplied 30 amp relay
Calibration: user calibrated for 2 to 4 forward detent locations plus Park; Reverse and Neutral
Compatible displays: Dakota Digital VFD; VHX; HDX; RTX and DGS series standalone indicators
Hardware: stainless steel and aluminum mounting hardware included
Transmission hardware included for: GM TH350; TH400; 700R4; 4L60/70/80; Ford C-4; Ford C-6
Universal mounting bracket included for other transmissions
Supersedes: GSS-1000 and GSS-2000
Listed price 150.00 USD
Variant count: 4
No decoder dimension; operating voltage or wire length is published on this listing
Universal automatic transmission gear position sender; the fitment condition is the transmission and the shift detent count; not the cab year.
Mounting hardware is supplied for GM TH350; TH400; 700R4 and 4L60/70/80 and for Ford C-4 and C-6. Other transmissions use the included universal bracket.
Works with Dakota Digital VFD; VHX; HDX and RTX instrument systems and with DGS series standalone indicators; or standalone.
Tagged across the Ford; Bronco and Chevy truck generation buckets the store sells Dakota Digital systems into.
