RTX Instrument Gauge System | Ford Pickup (1967-72)
Bumpside dash. Full color screens. Your bezel stays where it is. A 1967-72 F-Series cluster is honest and plain and about as informative as a wristwatch. Fuel; temperature and a warning lamp that tells you about the oil pressure after the fact. This kit goes into that opening and reuses the bezel you already have; plastic or metal; whichever the truck came with. Behind it sits an LED bar graph tach above the speedometer and twin full color TFT message centers. Sensors for oil pressure; coolant temperature and speed come with it. Bluetooth and the free app change the backlighting color from the driver seat. Running a Coyote or a Lightning drivetrain - the BIM-01-2 OBD-II interface lets the cluster read the engine directly instead of guessing through senders.
Install Level: Intermediate - bolt-in cluster with a central control box; sender and harness work required
Uses your stock plastic or metal gauge bezel. A bezel is NOT included; images showing one are for presentation only.
Bluetooth enabled; backlighting colors change through the free mobile app.
The BIM-01-2 OBD-II / CAN interface is recommended for a Lightning or Coyote drivetrain and is sold separately.
1967-72 Ford F-Series trucks are surely picking up steam, and we’re right alongside the trend with this bolt-in upgrade. Our package makes use of your stock plastic or metal gauge bezel, and includes sensors for oil pressure, coolant temp and speed. Should you find yourself with a Lightning or Coyote drivetrain, check out the BIM-01-2 OBD-II/CAN interface for simple connectivity. The LED bar graph tach positioned above the speedometer and twin TFT message centers keep the driver up to date in full color glory; thanks to the Bluetooth technology and our free mobile app, you can change the LED backlighting colors with your mood.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!

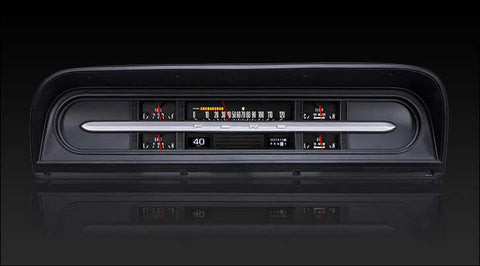

Note: Bezel not included, shown for visual/presentation purposes.
System uses OEM bezel(Bezel shown for representation purposes only).
Vendor: Dakota Digital
Series: RTX
Application: 1967-72 Ford F-Series pickup
Tachometer: LED bar graph positioned above the speedometer
Message centers: twin full color TFT
Included sensors: oil pressure; coolant temperature and speed
Bezel: not included; uses the stock plastic or metal gauge bezel
Connectivity: Bluetooth with a free mobile app for backlighting color
Housings: CNC machined
Electronics: designed and built in house
Control: central control box
Included: mounting hardware
Optional interface: BIM-01-2 OBD-II / CAN interface sold separately
Listed price 1765.00 USD
Variant count: 13
A bezel is not included with this system.
