Pro-Billet Distributor, Black Anodized, Small Cap, Steel Gear — Ford 289-302
Let the ignition disappear. Keep the roller cam protected. Not every build wants chrome and red caps. This one is black anodized so the hardware blends into a finished engine bay instead of pulling your eye to it. Underneath the finish it solves the Ford gear problem outright - no pressed-fit swap; no cross-drilling the shaft; no gear-height setup on the bench. The steel gear is Melonized QPQ coated; installed; and matched to hydraulic roller cams. The hardware is standard Pro-Billet: CNC machined billet housing and base; QPQ-coated shaft on a sealed ball bearing; advance plate and weights fine blanked from chrome moly steel.
Install Level: Intermediate - distributor swap; timing must be set
Requires an MSD 6; 7 or 8 Series ignition control - sold separately.
Steel gear installed - hydraulic roller camshafts. Check your cam card first.
Mechanical advance locks out for crank trigger use.
Ignition coil not included.
Let the ignition disappear. Keep the roller cam protected.

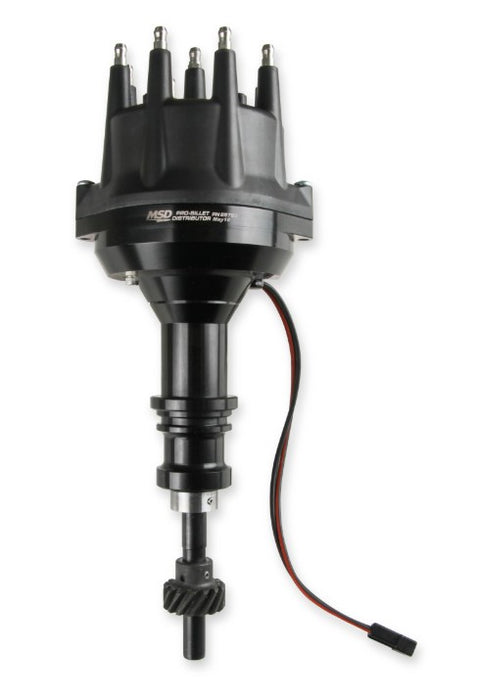

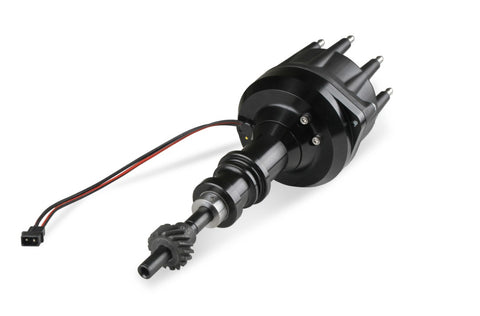

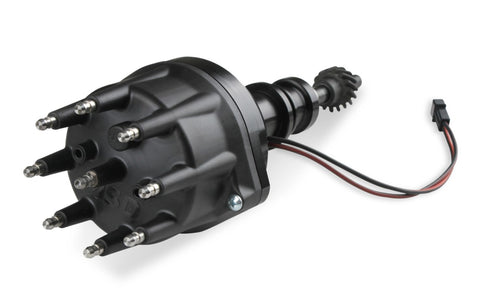

A black anodized Pro-Billet small diameter distributor for Ford 289-302, shipped with the steel gear already installed and set for a hydraulic roller camshaft. Requires an MSD 6, 7, or 8 Series ignition control.
Not every build wants chrome and red caps. This one is black anodized so the hardware blends into a finished engine bay instead of pulling your eye to it.
Underneath the finish, it solves the Ford gear problem outright. No pressed-fit swap, no cross-drilling the shaft, no gear-height setup on the bench — the steel gear is Melonized QPQ coated, installed, and matched to hydraulic roller cams. A flat tappet cam needs a different gear material, so check your cam card first.
The hardware is standard Pro-Billet, which is to say built to stay put. CNC machined billet aluminum housing and base. QPQ-coated shaft on a sealed ball bearing. Advance plate and weights fine blanked from chrome moly steel, with the mechanical advance adjustable by supplied springs and lockable for crank trigger use. The small cap keeps things tidy at the back of the intake.

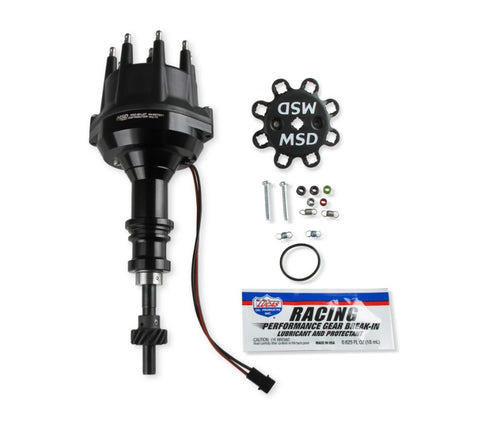

What's In the Box
The distributor and what ships with it:
- x1 Pro-Billet Small Diameter Distributor — Black Anodized, CNC Billet Housing and Base

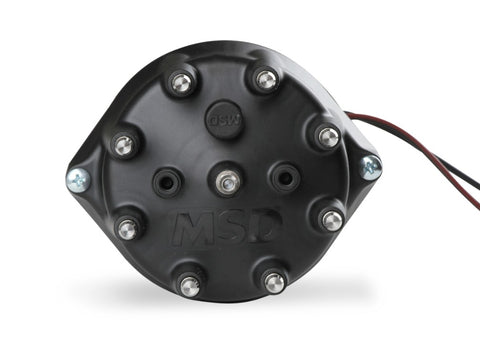

- x1 Distributor Cap — Small Diameter
- x1 Rotor
- x1 Steel Gear, Melonized QPQ Coated, Installed

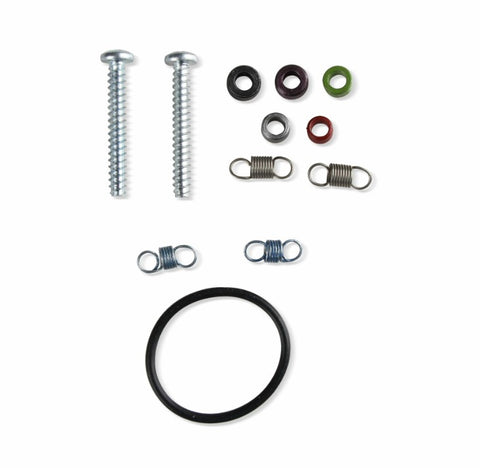

- Advance Springs and Stop Bushings
- Not included: ignition coil, MSD ignition control
- Fits: Ford Small Block 289-302.
- Requires: an MSD 6, 7, or 8 Series ignition control, sold separately.
- Gear: Steel, Melonized QPQ — for hydraulic roller cams. A flat tappet cam needs a different gear.
- Color: Black Anodized per the spec table.
- Emissions: Code 3 — non-emissions-controlled vehicles only. Warranty: 1 Year Limited.
Black anodized finish
CNC machined billet aluminum housing and base
Small diameter distributor cap
QPQ-coated shaft on a sealed ball bearing
Advance plate and weights fine blanked from chrome moly steel
Mechanical advance adjustable by supplied springs; locks out for crank trigger use
Steel gear - Melonized QPQ coated; installed
Includes: distributor; small diameter cap; rotor; installed steel gear; advance springs and stop bushings
Not included: ignition coil; MSD ignition control
Hydraulic roller camshafts - steel gear installed.
Requires an MSD 6; 7 or 8 Series ignition control.
