HDX Instrument Gauge System | Ford Pickup (1961-66)
$1,625.00

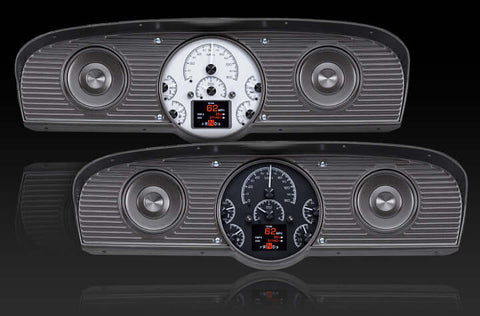

Dakota Digital HDX gauge cluster for 1961-66 Ford F100. Six analog gauges around a large TFT screen in your stock bezel, with no cutting. Not for Custom Cab dashes.
Install Level: Moderate
Bezel not included.
SKU: HDX-66F-BRO-K
Finish the Build Right
Parts our crew pairs with this kit so your swap goes together right the first time.
-
GPS Speed / Compass Sender / BIM Interface
$259.99
Details for GPS Speed / Compass Sender / BIM Interface
-
FFG 1961-1966 Ford Wire Harness
$1,620.00
Details for FFG 1961-1966 Ford Wire Harness
-
FFG 1961-66 Ford Wiring Harness Power Center Kit
$489.99
Details for FFG 1961-66 Ford Wiring Harness Power Center Kit
Here’s the answer for your 1961-66 Ford pickup; an all-in-one analog instrument system with a large TFT message center, designed to fit your stock dash. This systems uses your existing bezel, and does not fit Custom Cab models, but man it looks good! Choose from black or silver face styling, and feel free to connect to just about any drivetrain combination.
Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!
Vendor: Dakota Digital
Application: 1961-66 Ford pickup stock dash; uses the existing bezel
Excluded application: Custom Cab
Display: six analog instruments plus a large TFT message center
Illumination: independent color selection for gauge readings; needles and message centers
Controls: built-in capacitive-touch buttons; available Bluetooth app for Apple and Android
Indicators: dead-faced turn signals; high beam; check engine; cruise control; parking brake plus two user-definable
Warning: settable red warning light for each gauge
Needle hubs: black nickel plated spun aluminum
System: central control box with vehicle-harness sourced signals and supplied solid state sending units
Drivetrain: connects to just about any drivetrain combination
Face colors published: Black Alloy; Silver Alloy
Included: mounting hardware
Bezel not included
Listed price 1625.00 USD
Variant count: 3
Does not fit Custom Cab models.
The system connects to just about any drivetrain combination through the central control box and the supplied solid state sending units.
