HDX Instrument Gauge System | Ford Pickup (1973-79) and Ford Bronco (1978-79)
$1,625.00

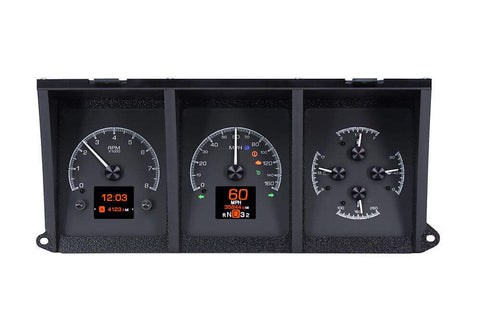

Dakota Digital HDX digital gauge cluster for 1973-79 Ford dentside trucks and 1978-79 Broncos. Six analog gauges and a color TFT screen drop into the factory dash.
Install Level: Moderate
Bezel not included; the one in the photos is for display.
Expansion modules for some drivetrains are sold separately.
SKU: HDX-73F-PU-K
Finish the Build Right
Parts our crew pairs with this kit so your swap goes together right the first time.
-
GPS Speed / Compass Sender / BIM Interface
$259.99
Details for GPS Speed / Compass Sender / BIM Interface
-
OBD-II / CAN Interface
$145.99
Details for OBD-II / CAN Interface
-
FFG 1973-79 Ford Crimp Tool Kit
$309.99
Details for FFG 1973-79 Ford Crimp Tool Kit
-
FFG 1973-79 Ford Wire Harness Mounting Plate Kit
$136.99
Details for FFG 1973-79 Ford Wire Harness Mounting Plate Kit
In 1973, Ford turned the bump into a recess, and the “dentside” pickups were born. The triple-square instrument systems have always been tricky to update, but this direct-fit system brings 21st century tech to the vintage truck. Supplied sensors and available expansion modules allow this system to mate with the drivetrain of your choice, while the full-color TFT message center provides additional info at a glance. Black or silver face styling are available.
Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons.
All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

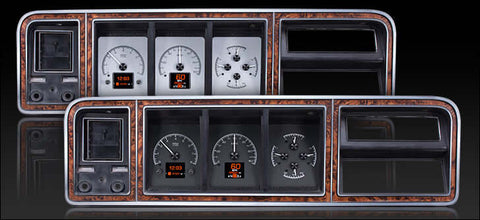

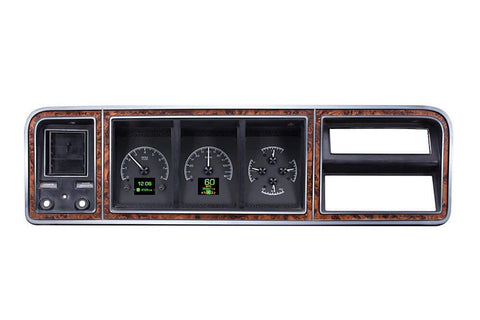

Note: Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Vendor: Dakota Digital
Application: 1973-79 Ford F-Series; 1978-79 Ford Bronco; direct fit to the triple-square instrument opening
Display: six analog instruments plus a full-color TFT message center

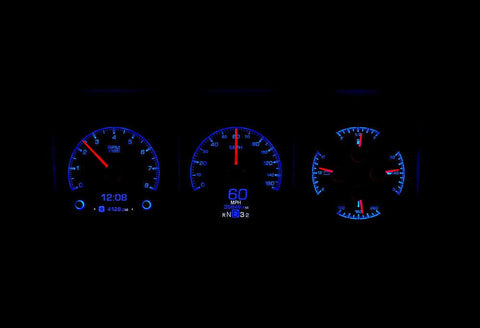

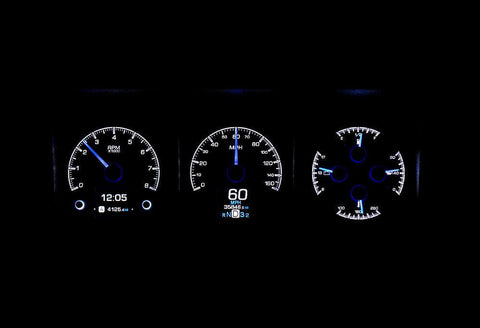

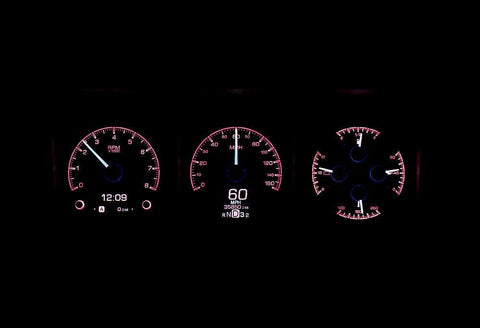

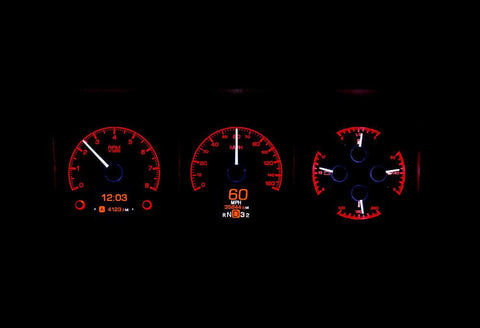

Illumination: independent color selection for gauge readings; needles and message centers
Controls: built-in capacitive-touch buttons; available Bluetooth app for Apple and Android
Indicators: dead-faced turn signals; high beam; check engine; cruise control; parking brake plus two user-definable
Warning: settable red warning light for each gauge
Needle hubs: black nickel plated spun aluminum
System: central control box with vehicle-harness sourced signals and supplied solid state sending units
Expansion: available expansion modules for drivetrain integration
Face colors published: Black; Silver
Included: mounting hardware
Bezel not included
Listed price 1625.00 USD
Variant count: 16
Product Category on this record reads Motor Vehicle Lighting
Also fits the 1978-79 Ford Bronco.
The bezel is not supplied; the system uses an OEM or reproduction style bezel.
Supplied sensors and available expansion modules allow the system to mate with the drivetrain of your choice.
