Crab Cap Distributor, Steel Gear — Ford 289-302, Low Profile
Out of room up top? Send the wires out the side. A blower; a tall air cleaner; a bracket that will not move - sometimes the cap is the problem and no amount of rerouting fixes it. A crab cap exits the plug wires from the side instead of the top and drops overall height where a conventional cap simply will not clear. It is built on the proven Pro-Billet foundation; so the clearance win costs nothing in accuracy. Race proven magnetic pickup; precision reluctor; hardened steel shaft on a sealed ball bearing. Solve the height problem without giving up the spark.
Install Level: Intermediate - distributor swap; timing must be set
Requires an MSD ignition control - sold separately.
Steel gear supplied; MSD advises contacting your cam manufacturer for the proper gear.
Cap is listed red in the spec table.
Ignition coil not included.
Out of room up top? Send the wires out the side.

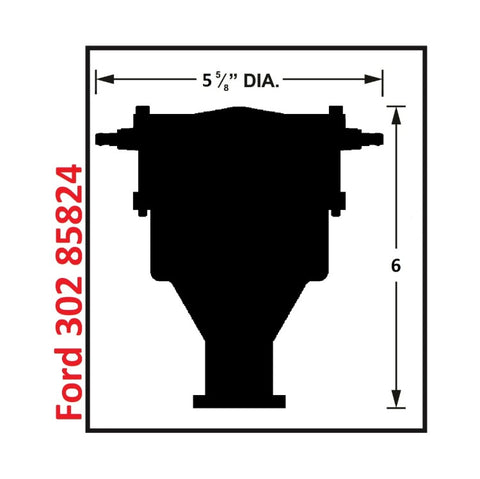

A low-profile crab cap distributor for Ford 289-302 built on the Pro-Billet foundation — the plug wires exit the side of the cap instead of the top, significantly lowering overall height. Steel gear supplied. Requires an MSD ignition control.
This one solves a height problem. Ford owners with distributor clearance issues from a blower, an air cleaner, or other parts interference are the reason it exists. A crab cap lets the plug wires exit the side of the cap, significantly lowering overall height where a conventional cap will not clear.
It is built on the proven foundation of the MSD Pro-Billet line, so the clearance win costs nothing in accuracy. A race proven magnetic pickup and precision reluctor deliver accurate trigger signals throughout high rpm, on a hardened steel shaft in a sealed ball bearing.
It ships with a steel gear, which MSD lists as compatible with most hydraulic roller cam applications — and MSD advises contacting your cam manufacturer for the proper gear. The fully adjustable mechanical advance uses supplied springs and stop bushings, and locks out for crank trigger systems.

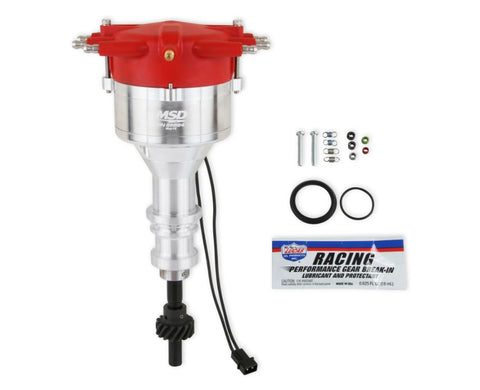

What's In the Box
The distributor and what ships with it:
- x1 Crab Cap Pro-Billet Distributor — CNC Billet Housing, Low Profile
- x1 Crab Style Distributor Cap — Side Wire Exit
- x1 Rotor
- x1 Steel Gear, Melonized QPQ Coated
- Advance Springs and Stop Bushings
- Not included: ignition coil, MSD ignition control
- Fits: Ford Small Block 289-302. Requires: an MSD ignition control.
- Cap: Crab Style, Side Wire Exit. Color: Red per the spec table.
- Gear: Steel, Melonized QPQ — listed for most hydraulic roller cam applications. Contact your cam manufacturer for the proper gear.
- Advance: Mechanical, Fully Adjustable, Lockable for Crank Trigger.
- Emissions: Code 3 — non-emissions-controlled vehicles only. Prop 65 warning.

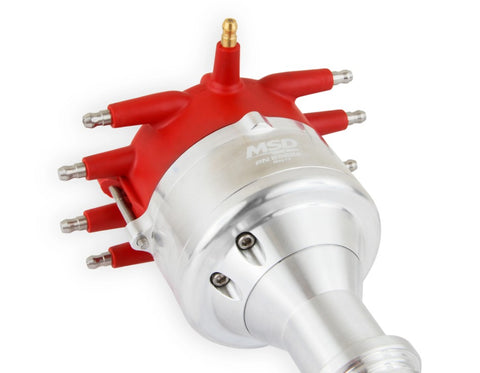

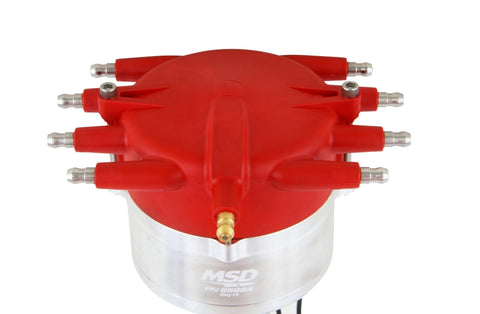

Crab style cap - plug wires exit the side of the cap; significantly lower overall height
CNC billet housing - Pro-Billet foundation
Race proven magnetic pickup and precision reluctor
Hardened steel shaft in a sealed ball bearing

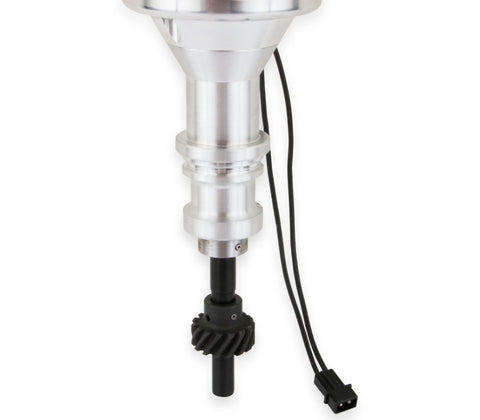

Steel gear - Melonized QPQ coated
Fully adjustable mechanical advance; supplied springs and stop bushings
Advance locks out for crank trigger systems
Includes: distributor; crab style cap; rotor; steel gear; advance springs and stop bushings
Not included: ignition coil; MSD ignition control
Requires an MSD ignition control.
Steel gear - confirm the correct gear material with your camshaft manufacturer.
