Gen 4X Coyote Control Pack w/ 18–20 10R80 Auto Trans

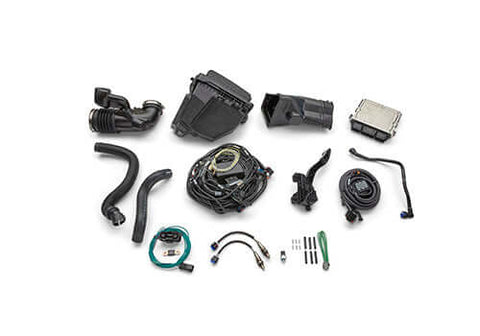

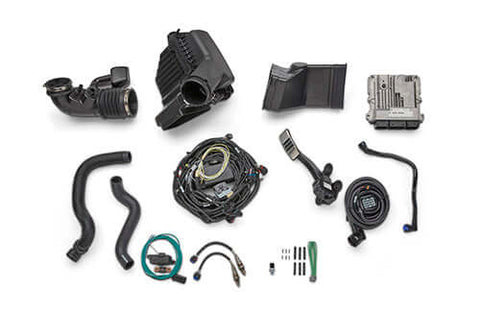

The newest engine on the oldest ten-speed you can find cheap. A 2018-2020 10R80 is the one that turns up in salvage yards at a reasonable number. Bolting it behind a Gen 4X crate engine is a smart build. Getting the two to agree is a software problem; and software problems do not respond to more torque. M-6017-M50HAB is the Ford Performance pack for exactly that pairing: the M-6007-M50H Gen 4X crate engine with a 2018 to 2020 Mustang or F-150 10R80. PCM with the Gen 4X calibration; a control pack harness replacing the stock body harness; OBD-II port for troubleshooting and code reading. It ships with the electronic throttle pedal; power distribution module; air box; air inlet tube; upper and lower radiator hoses and HEGO sensors. Read the fine print. Return-type fuel system required. The 2018-2020 F-150 10R80 transmission is welcome; an F-150 engine is not. And the PCM will not start a production Mustang. Competition and off-highway use only.
Install Level: Advanced - engine and transmission swap wiring; PCM calibration and full body harness replacement
Runs the M-6007-M50H 5.0L Gen 4X Coyote crate engine with a 2018 to 2020 Mustang or F-150 10R80 transmission.
Requires a return-type fuel system; see the Ford Performance instructions.
NOT for use with any production F-150 or Mustang Coyote engine. F-150 10R80 transmissions from 2018-2020 are supported.
Installing the PCM in a production Mustang results in a no-start condition.
For a 2021 or newer Mustang 10R80 use M-6017-M50HA.
This part is designed and intended for competition use only or off-highway use only. It should not be installed on a vehicle that is driven on public roads and highways. Installation on a road-going vehicle is likely to violate U.S. and Canadian motor vehicle emissions law.
- M-6017-M50HAB
- Runs the M-6007-M50H 5.0L Coyote crate engine with a 2018 to 2020 Mustang or F150 10R80 transmission
- Includes PCM with unique Ford Performance calibration
- Includes Electronic Throttle Pedal eliminating cable routing issues
- Unique control pack harness replaces the stock body harness and is designed for custom vehicle installation
- OBD-II port for trouble-shooting/code reading
- Includes power distribution module, air box, air inlet tube, upper and lower radiator hoses, and HEGO sensors
- Requires return-type fuel system (see instructions)
Runs the M-6007-M50H 5.0L Gen 4X Coyote crate engine
For a 2018 to 2020 Mustang or F-150 10R80 transmission
PCM with unique Ford Performance calibration
Electronic Throttle Pedal
Unique control pack harness; replaces the stock body harness
OBD-II port for troubleshooting and code reading
Power distribution module
Air box
Air inlet tube
Upper and lower radiator hoses
HEGO sensors
Requires a return-type fuel system
Not for use with any production F-150 or Mustang Coyote engine
Competition use only or off-highway use only
2018 to 2020 Mustang or F-150 10R80 10-speed automatic transmission.
Not for use with any production F-150 or Mustang Coyote engine.
Requires a return-type fuel system.
Engine-defined part; the 1967-72 generation tag on this listing reflects supported swap chassis rather than a published vehicle fitment.
