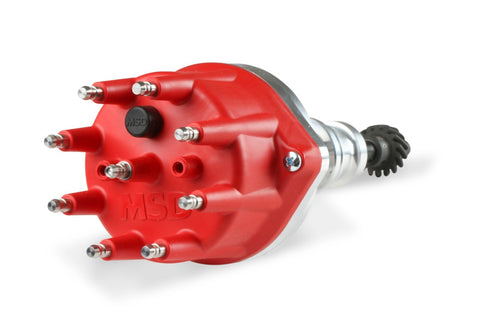

Pro-Billet Distributor, Small Red Cap, Steel Gear — Ford 289-302
$507.95
Pro-Billet distributor for Ford 289–302 small blocks with a small red cap and a steel gear installed and set for hydraulic roller cams. CNC billet housing, QPQ-coated shaft.
Install Level: Moderate
Requires an MSD 6, 7 or 8 Series ignition control, sold separately.
Ignition coil not included.
Steel gear is for hydraulic roller cams. A gear and cam mismatch can damage the engine.
Finish the Build Right
Parts our crew pairs with this kit so your swap goes together right the first time.
-
Adjustable Billet Timing Pointer — Small Block Ford, 11 O'Clock, Stock and SVO Blocks
$116.95
Details for Adjustable Billet Timing Pointer — Small Block Ford, 11 O'Clock, Stock and SVO Blocks
-
Flying Magnet Crank Trigger Kit — Small Block Ford Windsor 289/302/351W
$623.95
Details for Flying Magnet Crank Trigger Kit — Small Block Ford Windsor 289/302/351W
Machined billet. Roller cam gear already in it.

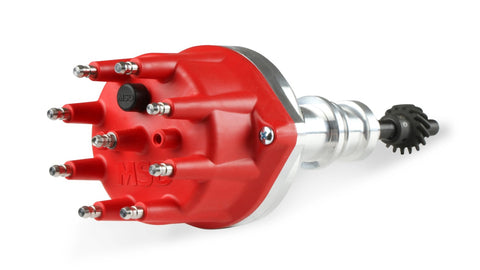

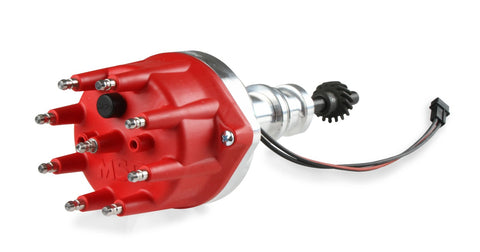

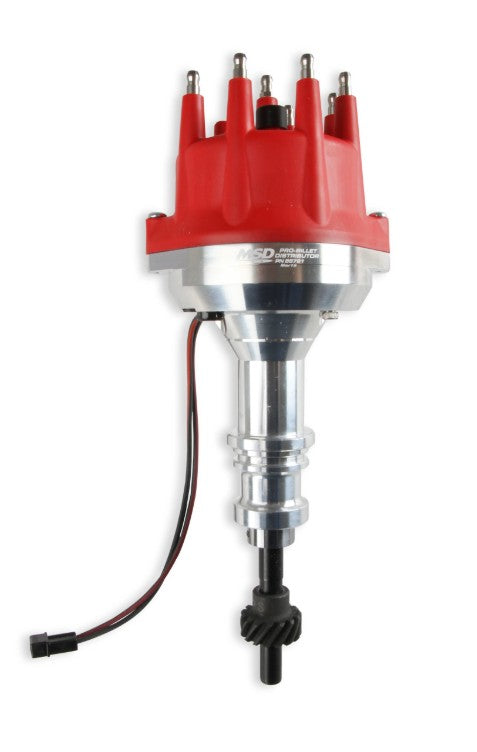

A Pro-Billet small diameter distributor for Ford 289-302 with the steel gear pressed on and set at the factory, under a small red cap. Requires an MSD 6, 7, or 8 Series ignition control.
The gear is already handled. Ford distributor gears are a pressed fit that normally require cross-drilling the shaft and setting the gear to a specific height — the kind of job that turns a weekend install into a shop appointment. Here the steel gear is on, set, and ready for a hydraulic roller camshaft.
One part number covers the distributor and the roller-cam gear, so there is one less thing to source and one less thing to get wrong. MSD is direct about why it matters: gear-to-cam material matching is what protects the camshaft, and a mismatch can lead to engine damage.
The rest is machined billet. CNC machined billet aluminum housing and base, with the shaft polished, QPQ coated, and carried on a sealed ball bearing. The timing curve is yours to set with supplied springs and stop bushings, and the advance locks out if you move to a crank trigger.

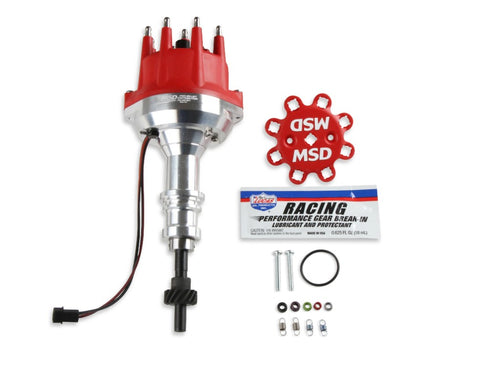

What's In the Box
The distributor and what ships with it:
- x1 Pro-Billet Small Diameter Distributor — CNC Billet Housing and Base
- x1 Distributor Cap — Small Diameter, listed red in the spec table
- x1 Rotor
- x1 Steel Gear, Melonized QPQ Coated, Installed

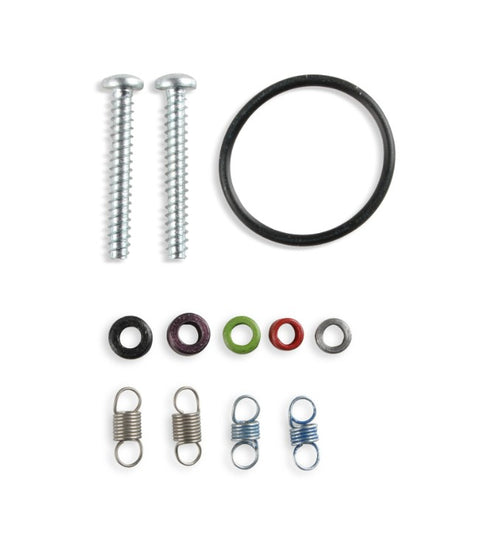

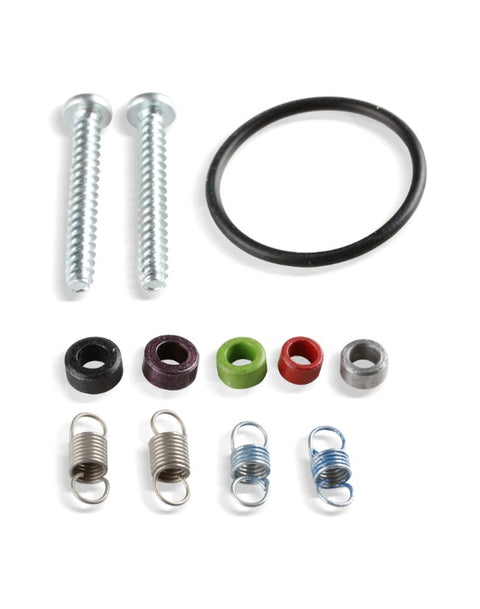

- Advance Springs and Stop Bushings
- Not included: ignition coil, MSD ignition control
- Fits: Ford Small Block 289-302.
- Requires: an MSD 6, 7, or 8 Series ignition control, sold separately.
- Gear: Steel, Melonized QPQ — for hydraulic roller cams. A flat tappet cam needs a different gear.
- Color: Red per the spec table. Housing finish is not published.
- Emissions: Code 3 — non-emissions-controlled vehicles only. Prop 65 warning.
CNC machined billet aluminum housing and base

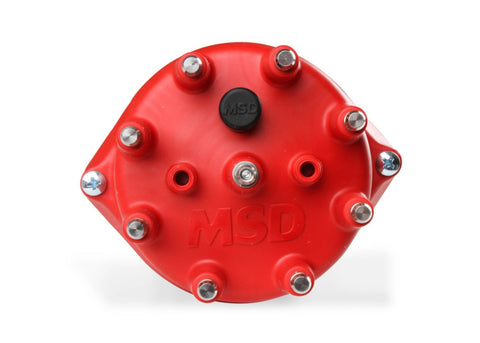

Small diameter cap - listed red in the spec table
Polished; QPQ-coated shaft on a sealed ball bearing
Steel gear - Melonized QPQ coated; installed and set
Adjustable mechanical advance; supplied springs and stop bushings
Advance locks out for crank trigger use
Includes: distributor; cap; rotor; installed steel gear; advance springs and stop bushings
Not included: ignition coil; MSD ignition control
Hydraulic roller camshafts - steel gear installed.
Requires an MSD 6; 7 or 8 Series ignition control.
