Street Pro-Billet Distributor — Ford 289/302, CARB E.O. D-40-39
Set your own curve. Without a laptop. A fully adjustable chromoly mechanical advance sits on top of the shaft; and the supplied springs and stop bushing decide how fast timing arrives and where it stops. No software. No guessing. And it locks out if you move to a crank trigger. The vacuum advance canister is there for economy - the difference between a distributor built for a dyno and one built for a truck you actually drive. Cap and housing run 5/8 inch smaller than stock; adding real room in front of the engine. C.A.R.B. E.O. D-40-39 behind all of it.
Install Level: Intermediate - distributor swap; timing must be set
Requires an MSD 6; 7 or 8 Series ignition control - sold separately.
C.A.R.B. E.O. D-40-39; Emission Code 1.
Cap listed red in the spec table.
Cast iron gear - MSD reserves steel for hydraulic roller cams.
Ignition coil not included.
Set your own curve. Without a laptop.
A Street Pro-Billet distributor for the Ford 289 or 302 with a fully adjustable mechanical advance and a vacuum advance canister — and MSD lists it with C.A.R.B. E.O. D-40-39. Small diameter cap and housing, cast iron gear, MSD box required.
You control how the timing comes in. A fully adjustable chromoly mechanical advance sits on top of the shaft, and the supplied springs and stop bushing set how fast timing arrives and where it stops. No software, no guessing — and it locks out for a crank trigger.
The vacuum advance canister is there for improved economy, which is the difference between a distributor built for a dyno and one built for a truck you drive. A race proven magnetic pickup and precision reluctor feed the MSD ignition throughout high rpm, with a hardened steel shaft in a sealed ball bearing.

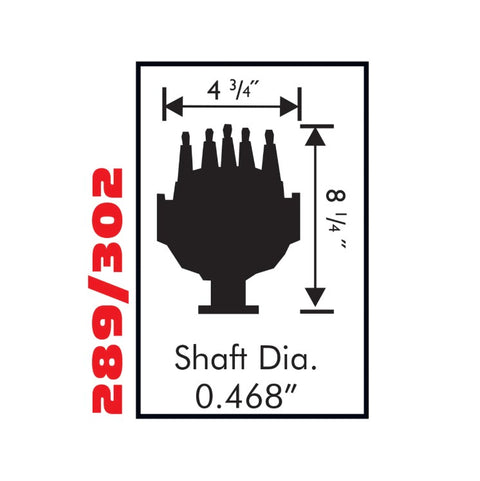

The cap and housing run 5/8 inch smaller than stock, adding real room in front of the engine. MSD lists it with C.A.R.B. E.O. D-40-39 and Emission Code 1 — 50-state legal when used per the application guide.

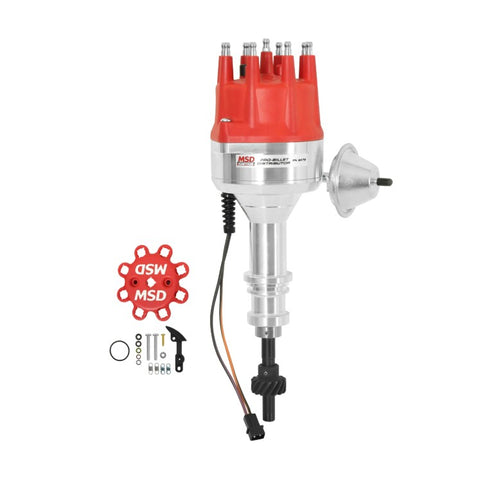

What's In the Box
The distributor and what ships with it:
- x1 Street Pro-Billet Distributor — CNC Billet Housing and Base
- x1 Small Diameter Cap, HEI Terminals
- x1 MSD Race Rotor
- x1 Vacuum Advance Canister
- x1 Cast Iron Gear, Melonized QPQ Coated
- Advance Springs and Stop Bushing
- Not included: ignition coil, MSD ignition control
- Fits: Ford 289 / 302.
- Requires: an MSD 6, 7, or 8 Series ignition control, sold separately.
- Housing: Cap and housing 5/8" smaller than stock. Color: Red per the spec table.
- Gear: Cast Iron, Melonized QPQ — a hydraulic roller cam generally calls for a steel gear.
- Emissions: Code 1, C.A.R.B. E.O. D-40-39 — 50-state legal per the application guide. Prop 65 warning.
CNC billet housing and base
Cap and housing 5/8 inch smaller than stock
Small diameter cap; HEI terminals
MSD race rotor
Fully adjustable chromoly mechanical advance; springs and stop bushing supplied
Advance locks out for crank trigger use
Vacuum advance canister included
Race proven magnetic pickup and precision reluctor
Hardened steel shaft in a sealed ball bearing
Cast iron gear - Melonized QPQ coated
C.A.R.B. E.O. D-40-39; Emission Code 1
Not included: ignition coil; MSD ignition control
Requires an MSD 6; 7 or 8 Series ignition control.
Cast iron gear - confirm against your camshaft material.
